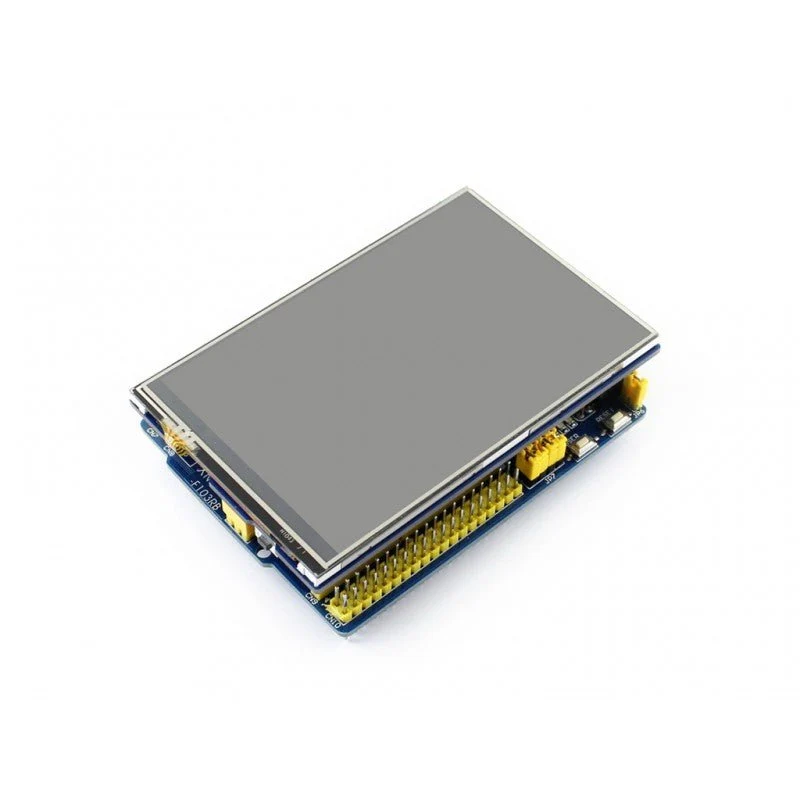

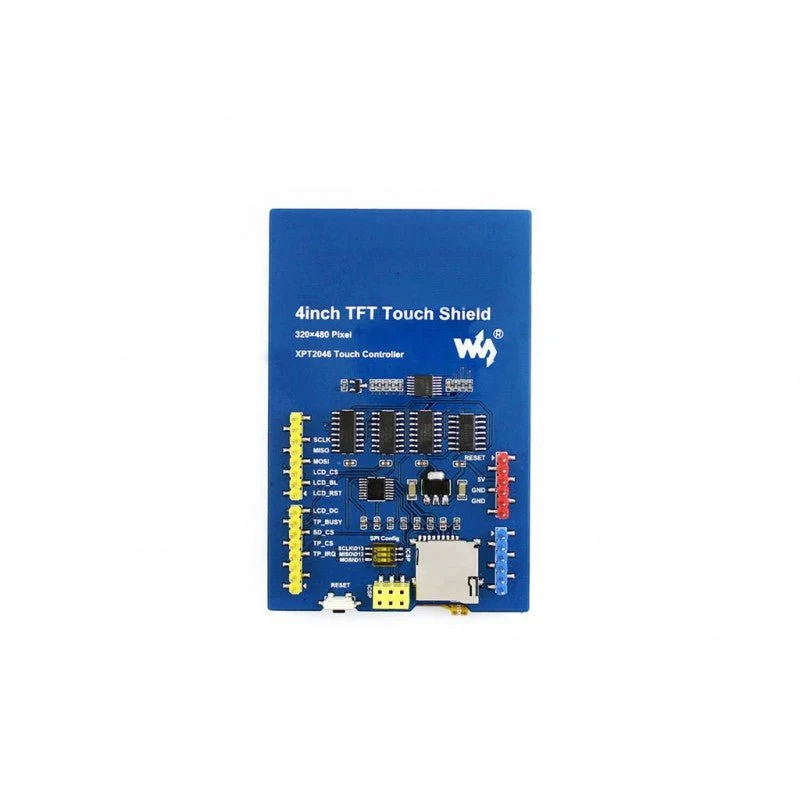

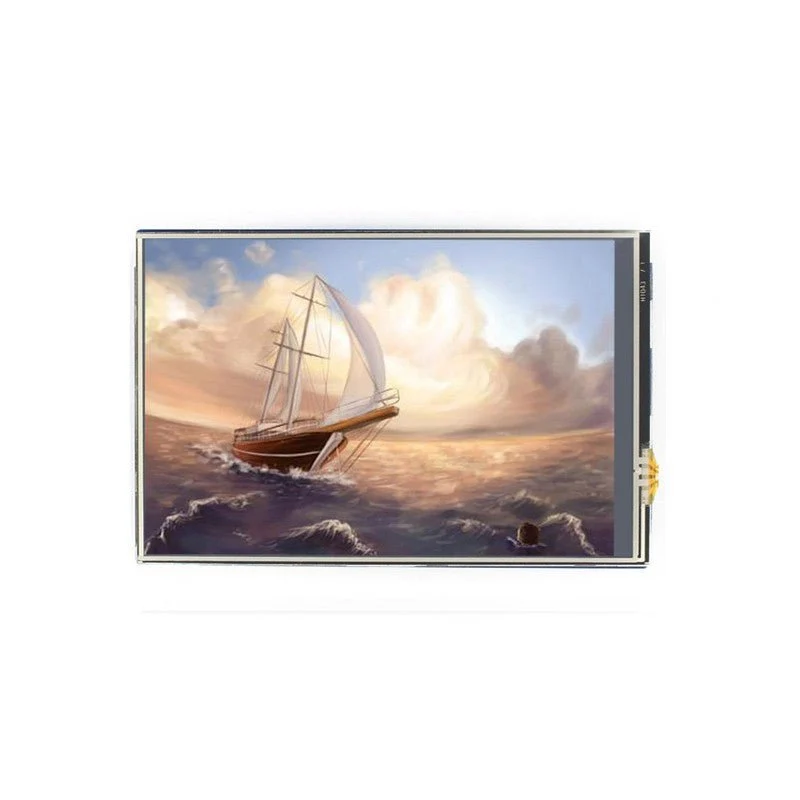

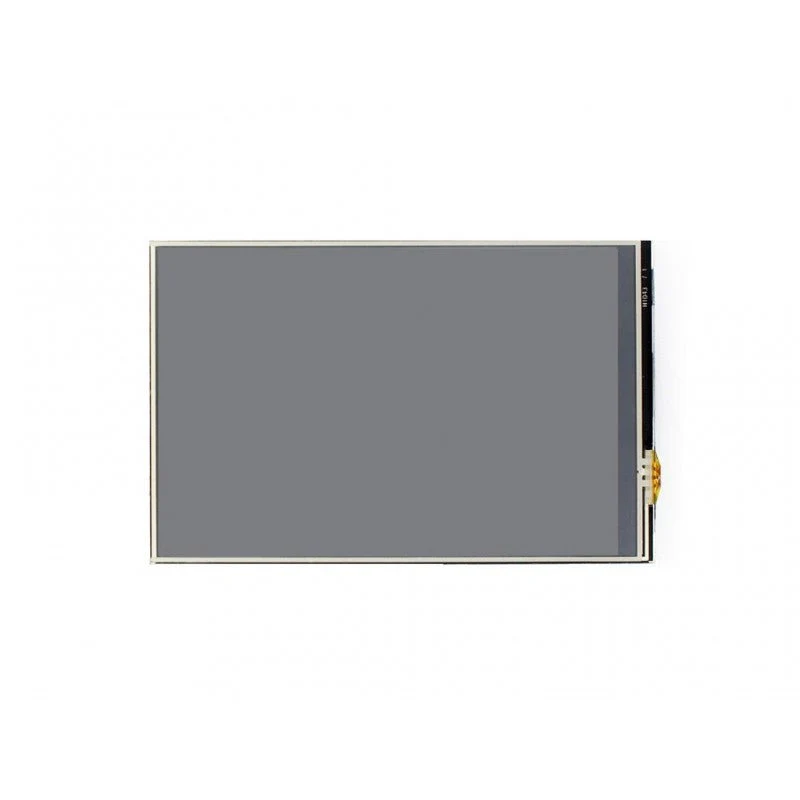

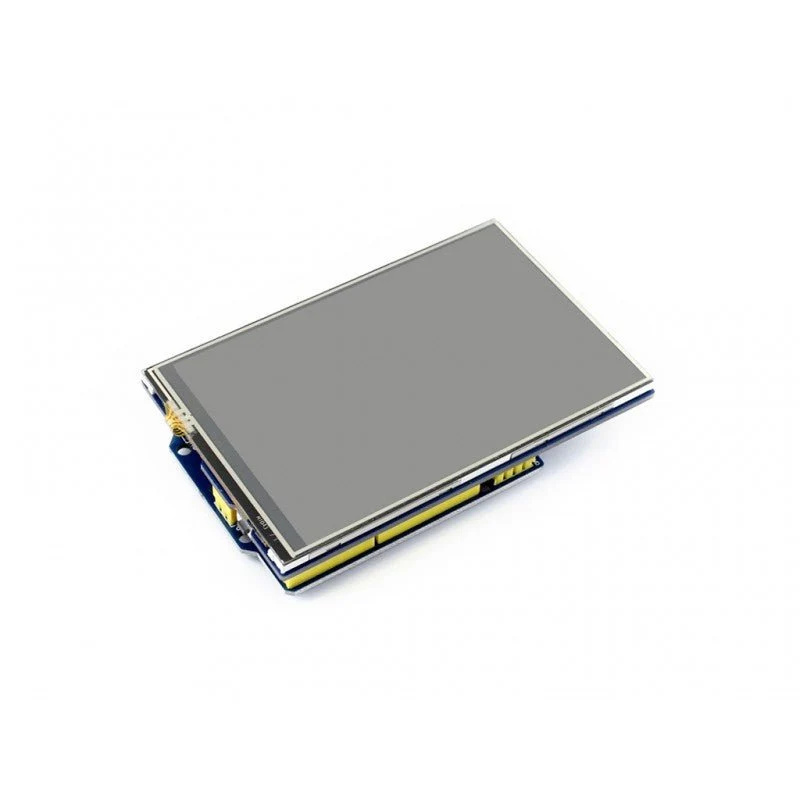

Waveshare - 4 " TFT Touch Shield compatible with Arduino

The 4-inch touch LCD shield for Arduino is a responsive display module that brings your projects to life. The 4-inch TFT LCD comes with a ILI9486 LCD controller and a resistive touch screen which is controlled by an XPT2046 controller.

This interactive display offers excellent touch control, adjustable backlight brightness, micro SD memory, a mefficient SPI interface and comes with numerous examples of a easy integration integration. Open up new creative dimensions and enhance your projects with this feature-rich shield.

Technical features:

Operating voltage	3.3 - 5V
Display type	LCD TFT
Display controller	ILI9486
Resolution	480 x 320 pixel
Touchscreen controller	XPT2046
Touchscreen type	resistive
Interface	SPI
Colors	RGB 65K colors

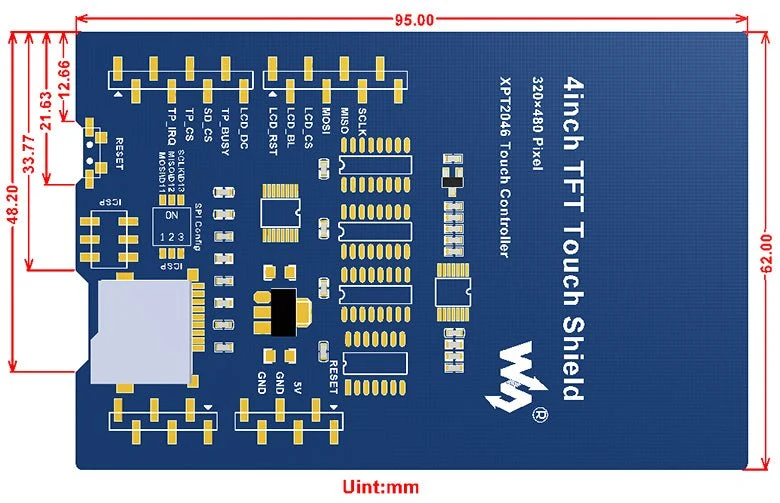

Dimensions	95 x 63 x 15 mm
Weight	68g

Quality & Support:

Open up new creative dimensions and enhance your projects with this feature-rich shield.

QUICK-START-GUIDE

When you purchase one of our high-quality products, you will also receive an included e-book for a quick introduction to the world of microelectronics.
