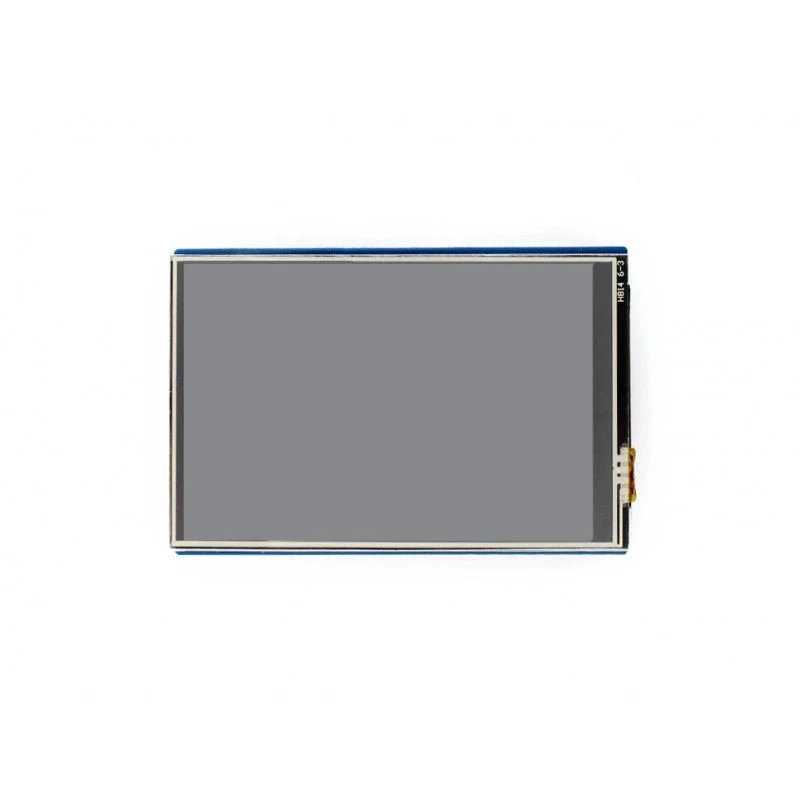

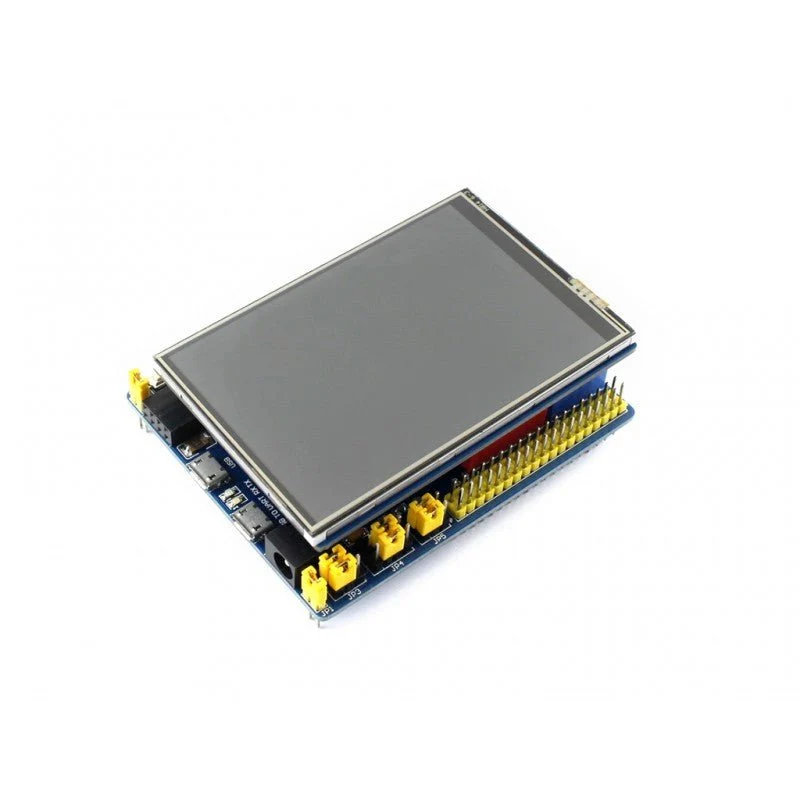

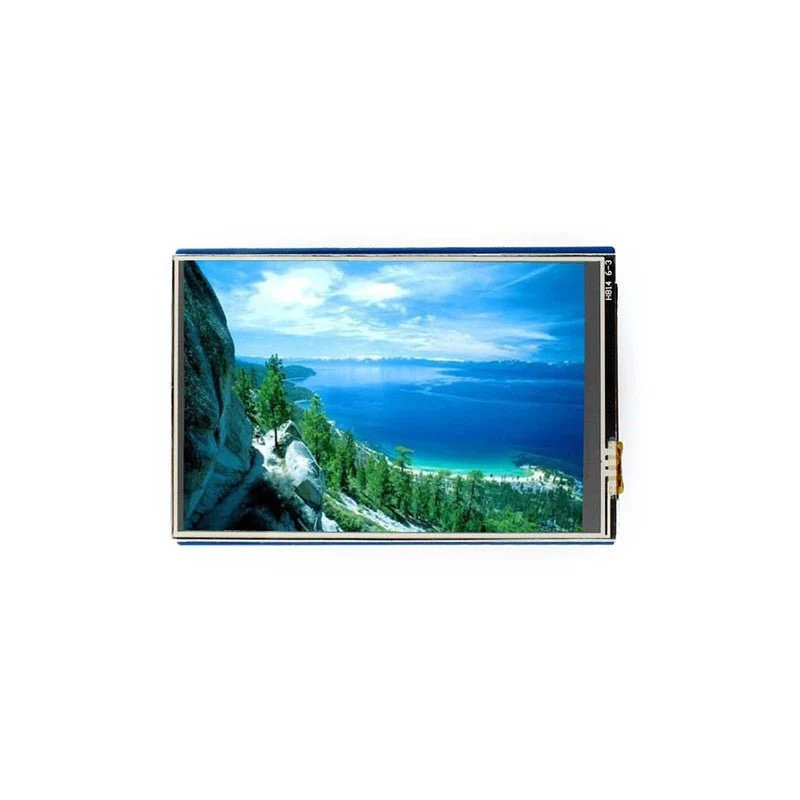

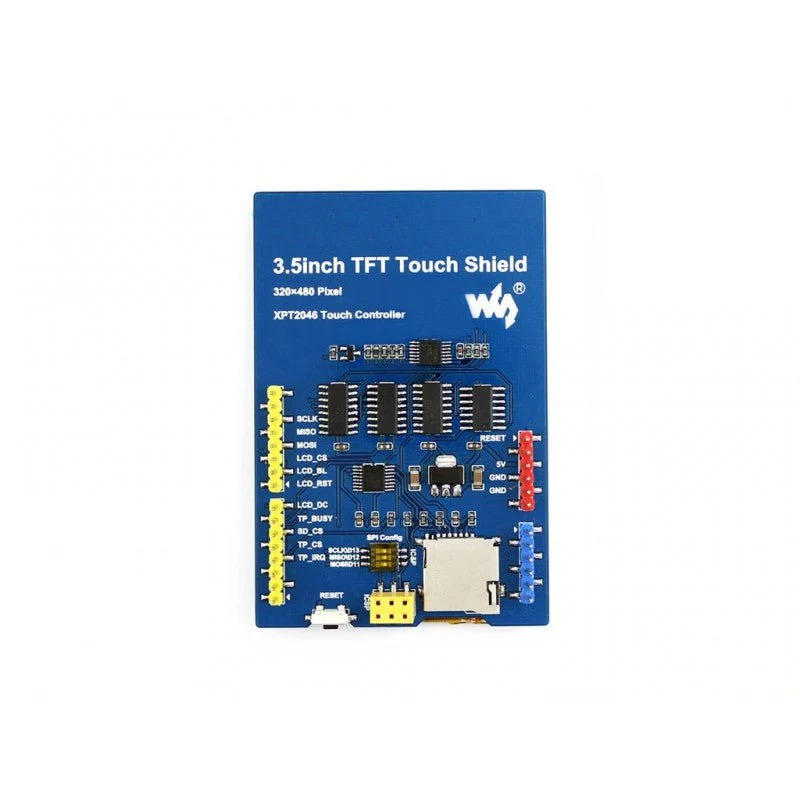

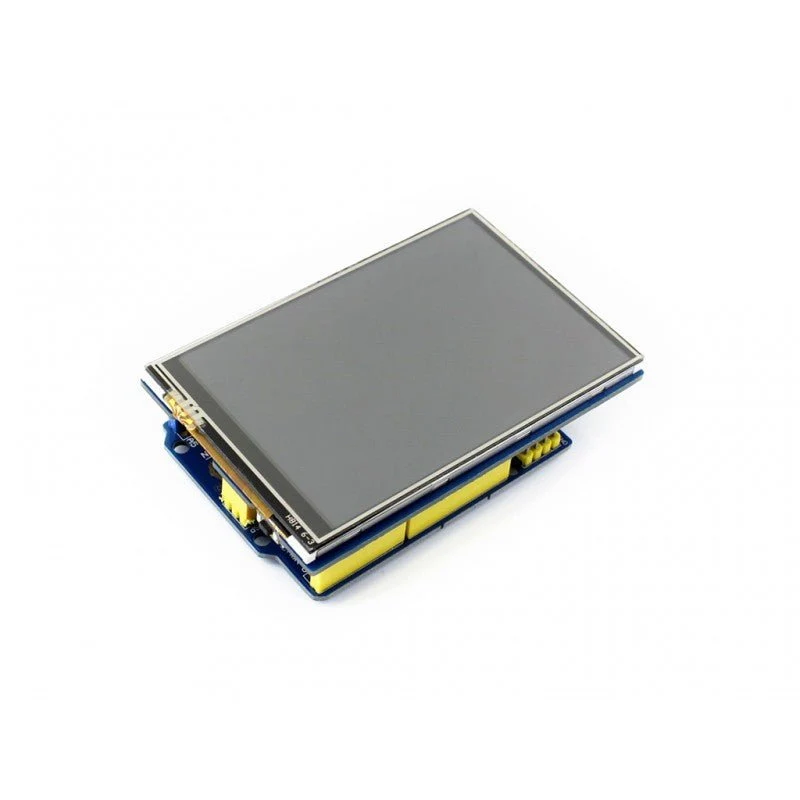

Waveshare - 3.5" TFT Touch Shield Display compatible with Arduino

The 3.5-inch touch LCD shield for Arduino is a responsive display module that brings your projects to life. The 3.5-inch TFT LCD comes with an ILI9486 LCD controller and a resistive touchscreen that is controlled by a XPT2046 controller.

This interactive display offers a excellent touch control, adjustable backlight brightness, micro SD memory, an efficient SPI interface and comes with numerous examples for easy integration. Open up new creative dimensions and enhance your projects with this feature-rich shield.

Technical features:

LCD type	TFT
Display size	3.5 inch

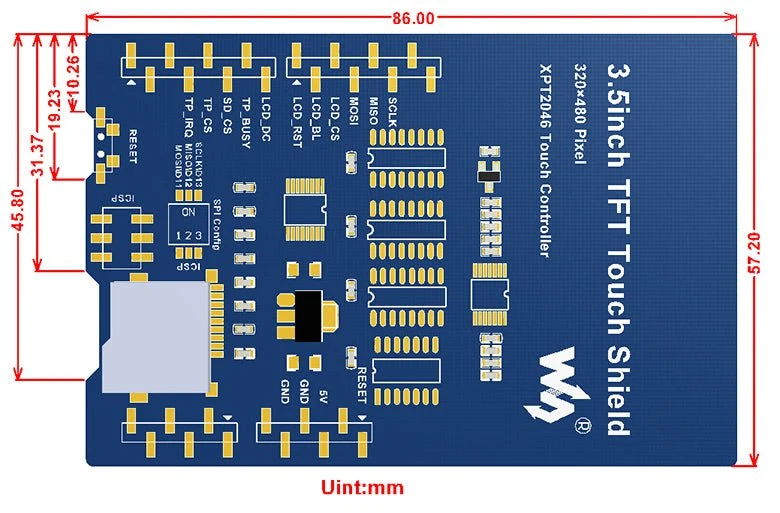

Module size	86*57.2mm
Display resolution	480x320 pixels
Show color	RGB, 65K colors
Operating voltage	3.3 - 5V
Interface type	SPI
LCD controller	ILI9486
Touchscreen type	Resistant
Touchscreen controller	XPT2046

Quality & Support:

Open up new creative dimensions and enhance your projects with this feature-rich shield.

QUICK-START-GUIDE

When you purchase one of our high-quality products, you will also receive an included e-book for a quick introduction to the world of microelectronics.
