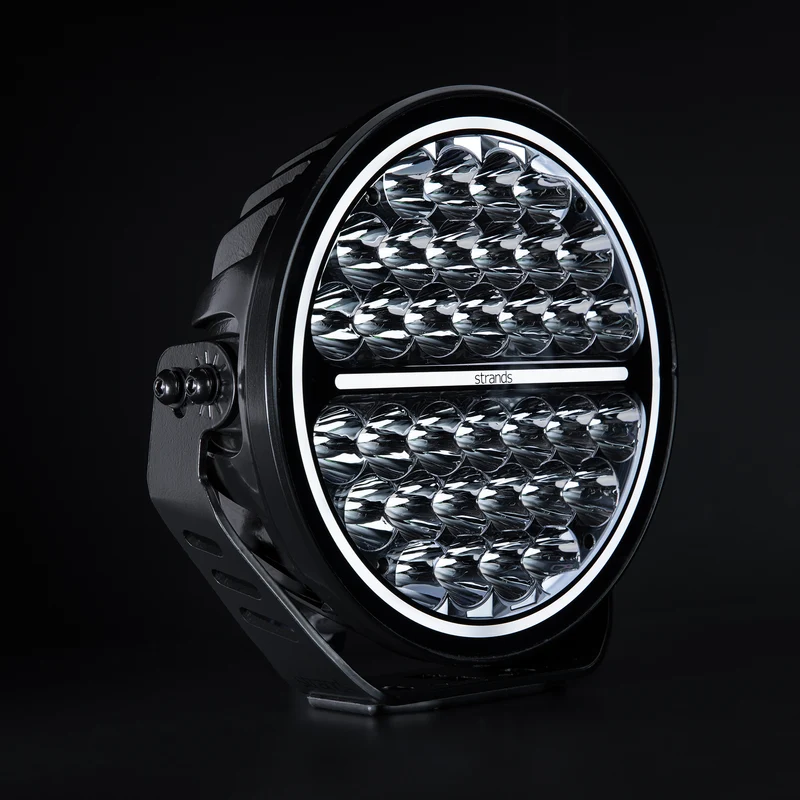

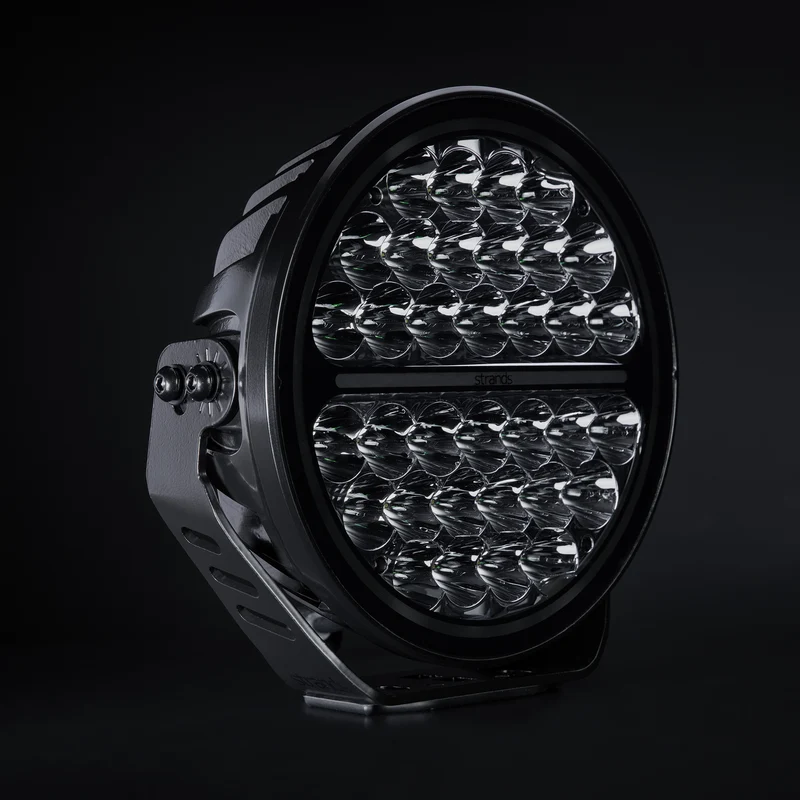

Strands Siberia Night Ranger Driving Light / 9" XP Version

Strands Siberia Night Ranger Driving Light / 9" XP Version

The best selling Strands Night Ranger LED Driving Lamp has been upgraded with this new XP Version. So what are the main differences?

• Two Main Beam Options:
  • E-Approved Mode: When the main beam is activated, the main beam has 3080 Lumens
  • Xperience Mode: When you flash the headlights 3 times, Xperience Mode kicks in and delivers an outstanding 15,030 lumens

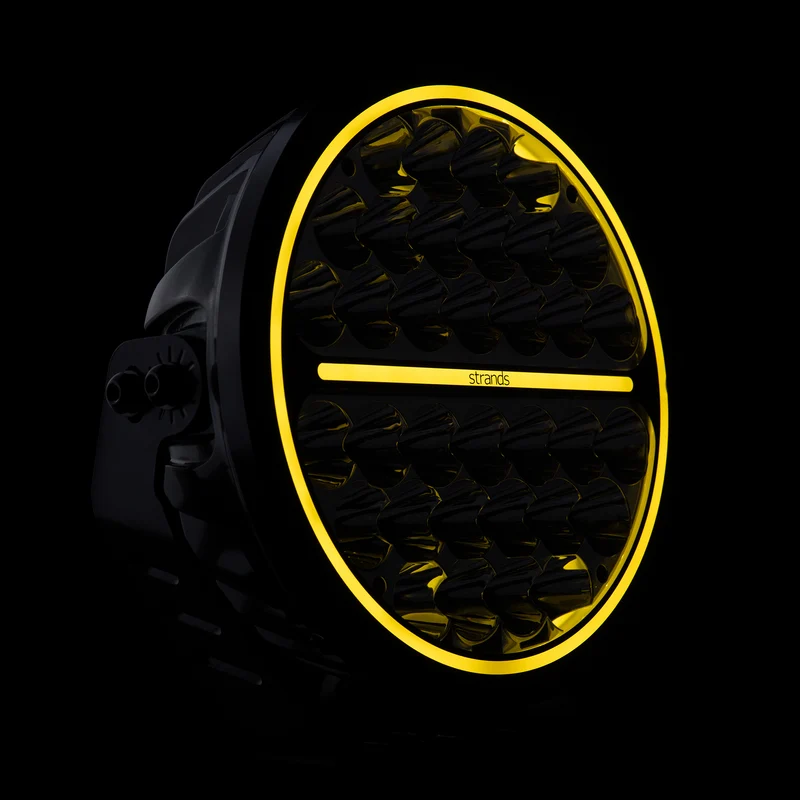

• Yellow Position Light - Stands out more than the Amber on the standard model.
• Hello Function: Flash the headlights twice and the position light flahes dynamically (video below)
• Upgraded Paintwork: New powder coating is even more resistant to dirt, salt and water.

>>> Click here to view the installation manual <<<

With its 3080 (E-Approved Mode) / 15,030 (Xperience Mode) incredible actual lumens, the Siberia XP 9” will light up the darkest night and most challenging roads. This updated driving light has a long-distance beam pattern with E-mode and Xperience-mode.

This results in a range of 330/711 meters, ensuring very high forward visibility. Choose between two lens covers for a perfectly customised output: dark and yellow. The XP 9” also features a new yellow and white position light and Hello function.

Its durable materials and new powder coating make it a long-lived addition to any vehicle, with an IP rating of IP68/IP69K. Enjoy an effortless installation thanks to the DT-4 connector and 150 mm cable, saving you the hassle of connecting cables.

It is E-approved ECE R149(R112), R148(R7), and EMC certified ECE R10.

Strands Siberia XP Night Ranger 9" Specifications:

• Voltage: 11-40V DC
• Power Consumption:
  • E-mode: 31W
  • Xperience mode: 144W
  • Position Light (White/Yellow): 5.4W each

Functions

• High beam

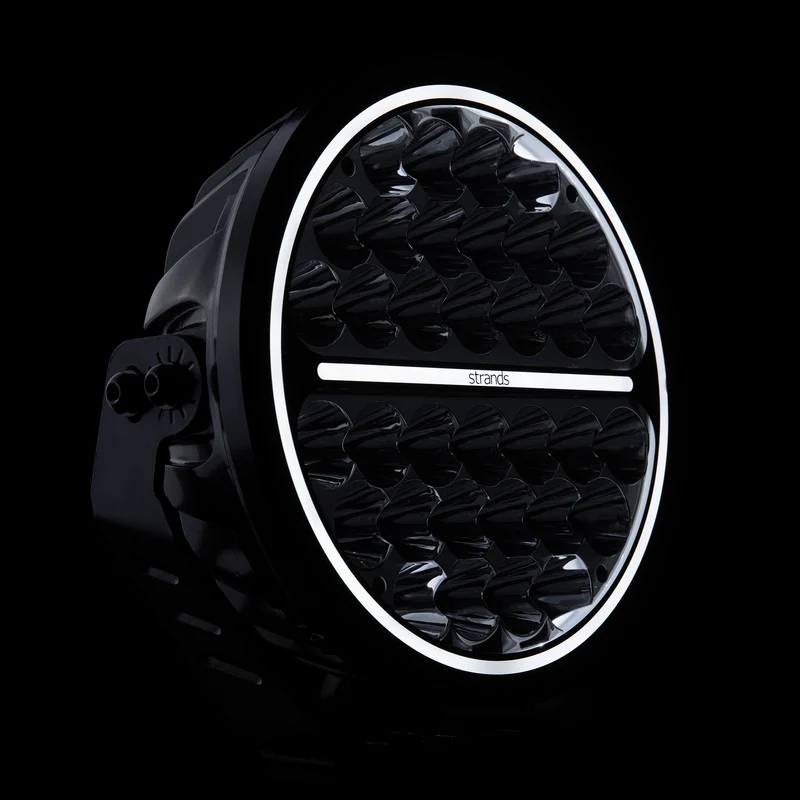

• White and yellow position lights
• Separate "Hello" function for position lights

Performance

• Theoretical Lumen: 20,000 lm
• Actual Lumen:
  • E-mode: 3,080 lm
  • Xperience mode: 15,030 lm

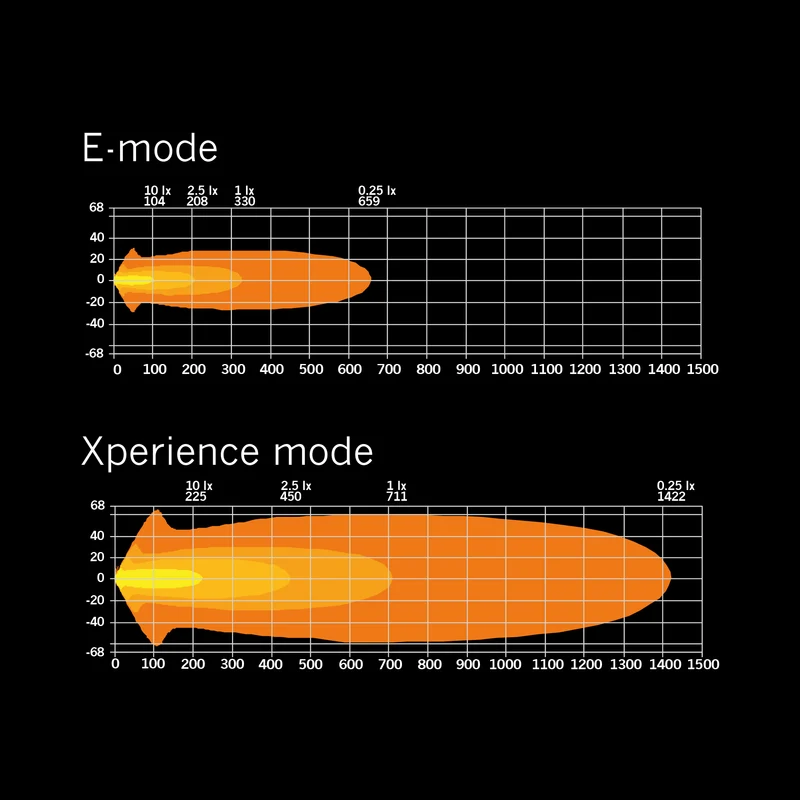

• 1 LUX Range:
  • E-mode: 330m
  • Xperience mode: 711m
• Color Temperature: 5700K
• Beam Pattern: Long-distance beam

Construction & Durability

• Housing Material: Aluminium (Black)
• Lens Material: Polycarbonate (Clear)
• Bracket Material: Stainless steel
• IP Class: IP68/IP69K
• Operating Temperature: -30°C to +65°C

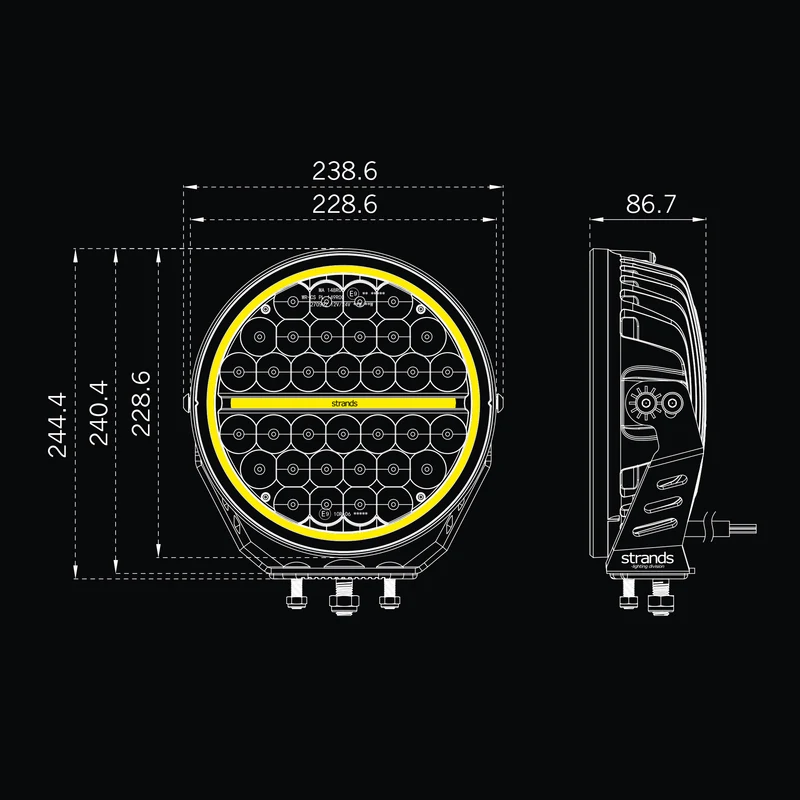

Dimensions

• Length: 228.6mm
• Depth: 86.7mm
• Height:
  • Without bracket: 228.6mm
  • With bracket: 244.4mm
• Diameter: 228.6mm

Certifications & Standards

• E-Approved: Yes
• Regulations:
  • ECE R148 (R7)
  • ECE R149 (R112)
• Reference Number: 20
• EMC: ECE R10

Connection Details

• Connector Type: DT-4
• Cable Length: 150mm
