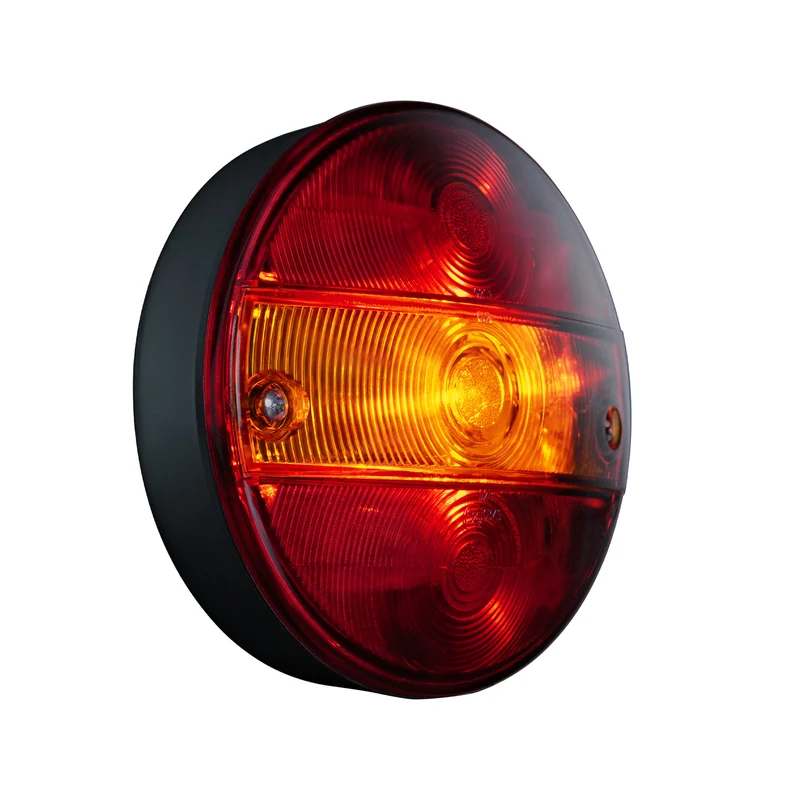

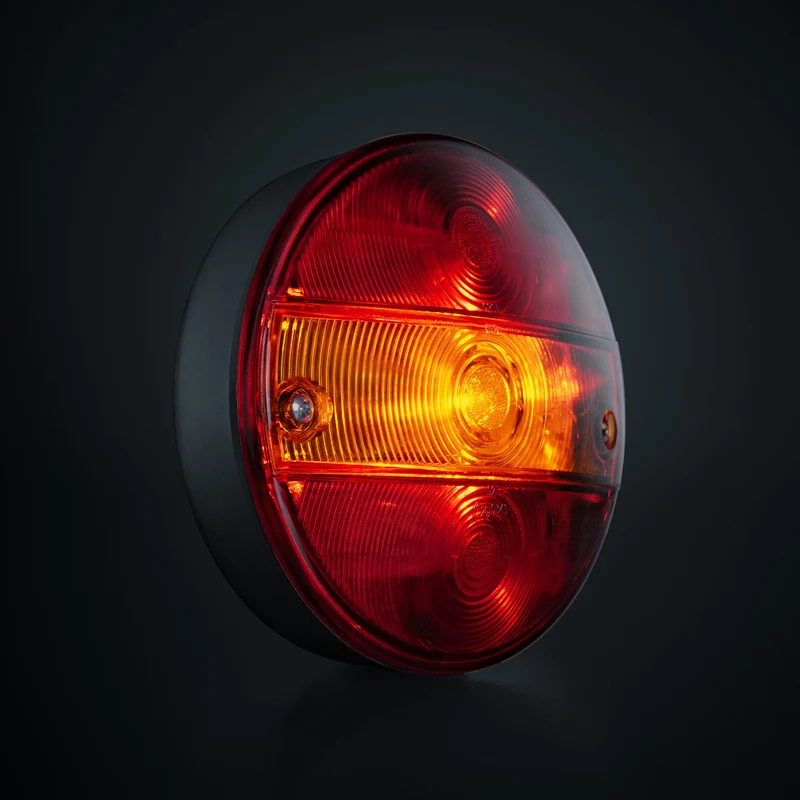

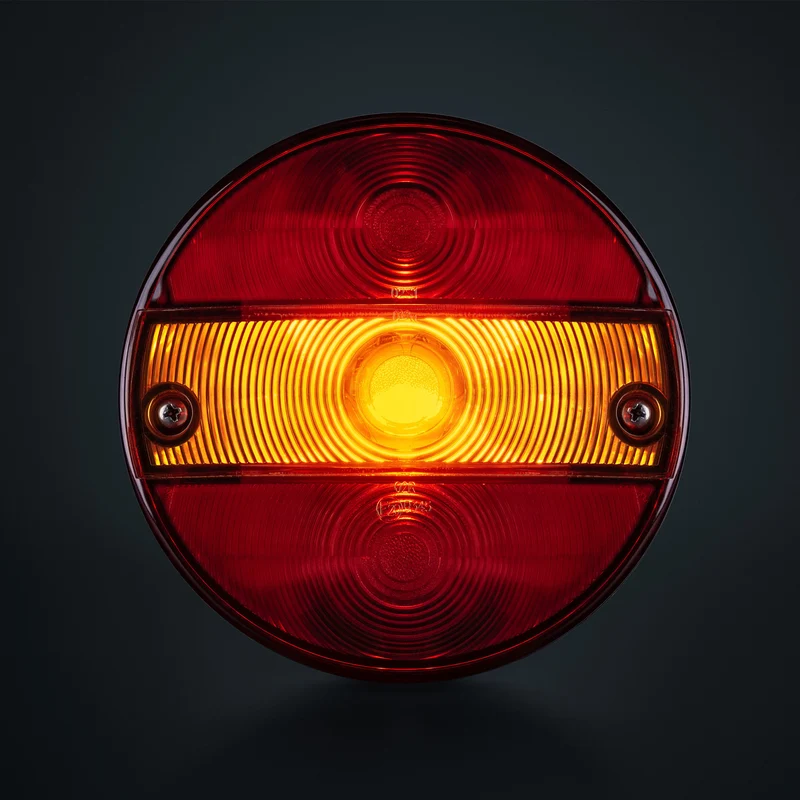

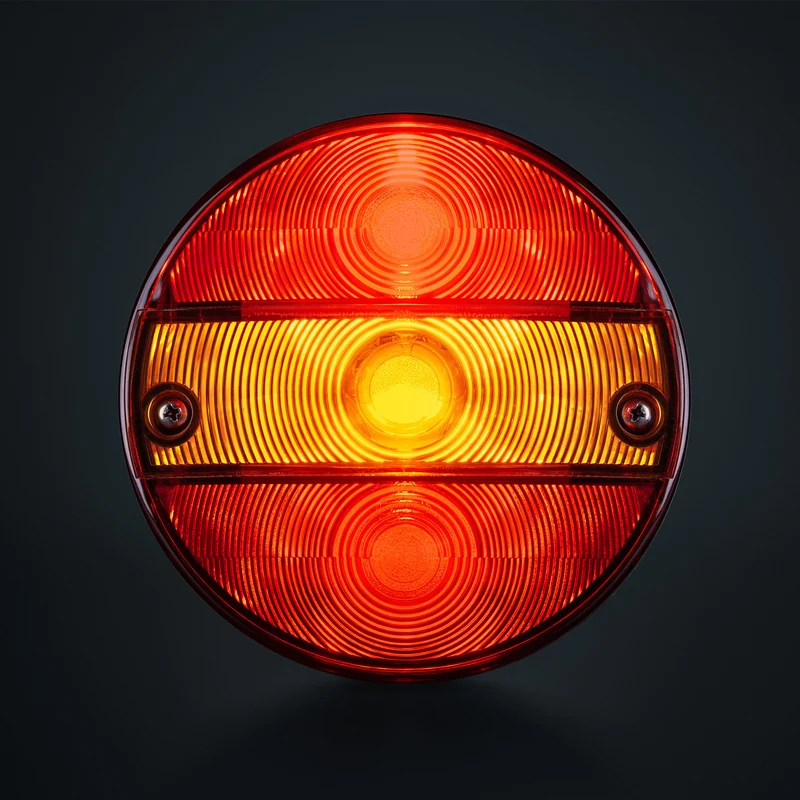

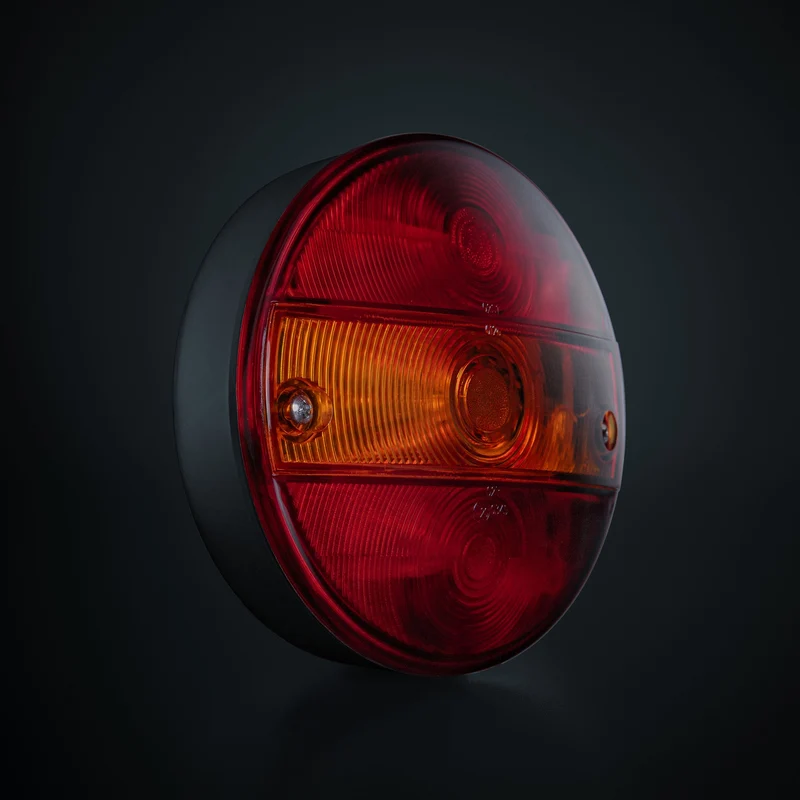

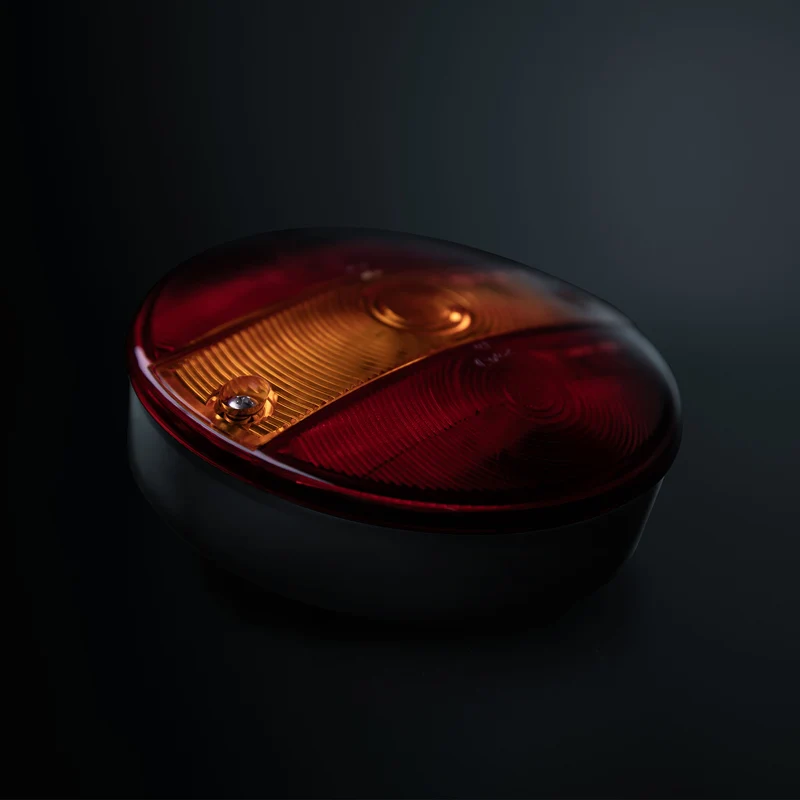

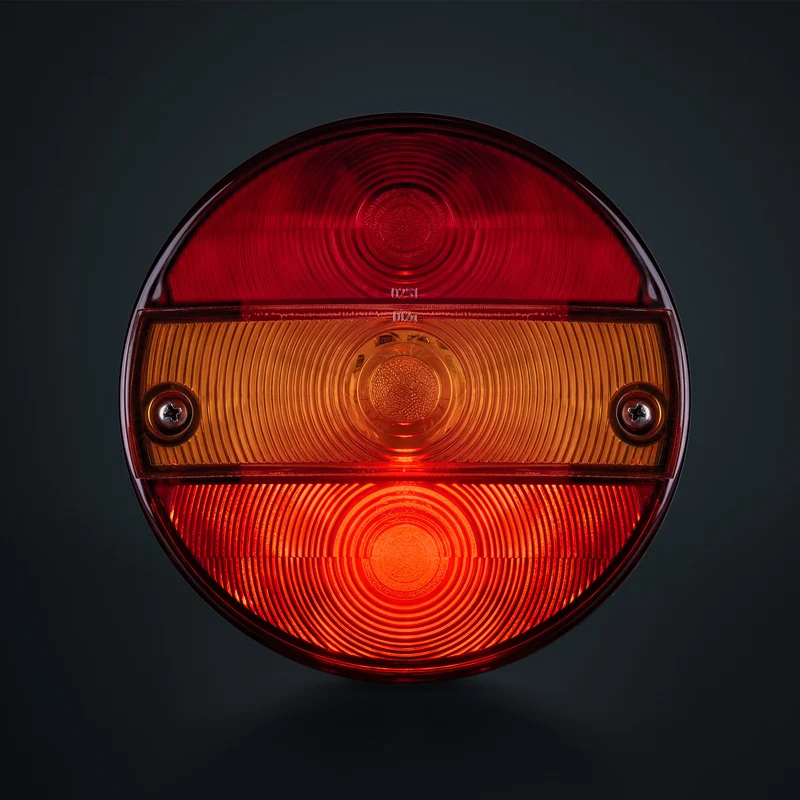

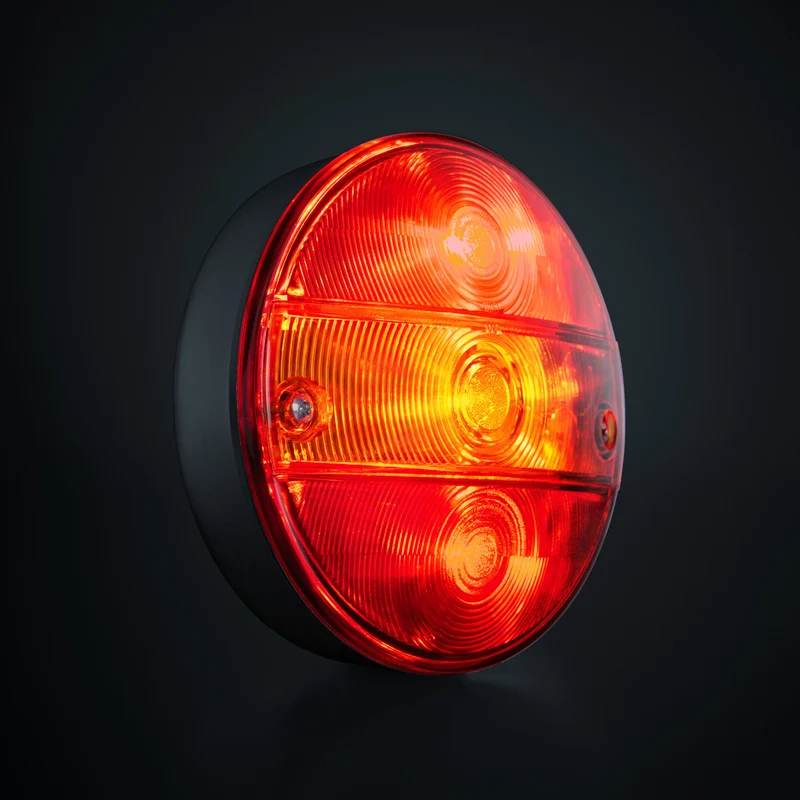

Strands LED OG Hamburger Tail Light

IZE LED OG Ham burger Rear Light — 3 Function (12–24V)

The IZE LED OG “Hamburger” tail light combines a classic Hella halogen-style appearance with the performance and durability of modern LED technology. Designed to deliver a rich, intense glow, it offers a timeless look without the need for frequent bulb replacements — giving you the best of both worlds.

Featuring tail, brake, and indicator functions, this lamp is fully E-approved (R148) and also D-approved, allowing two lights to be installed together. Manufactured in Europe, it is built for reliability and ease of installation, making it a practical choice for a wide range of vehicles.

Key Features

• Classic halogen-style glow with full LED efficiency
• 3 functions: Tail, brake, and indicator
• E-approved (R148) and D-approved
• Suitable for 12–24 V systems
• Low power consumption: 2.5 W
• IP6K9K rated for maximum durability and weather resistance
• Backed by a 5-year warranty

Design & Installation

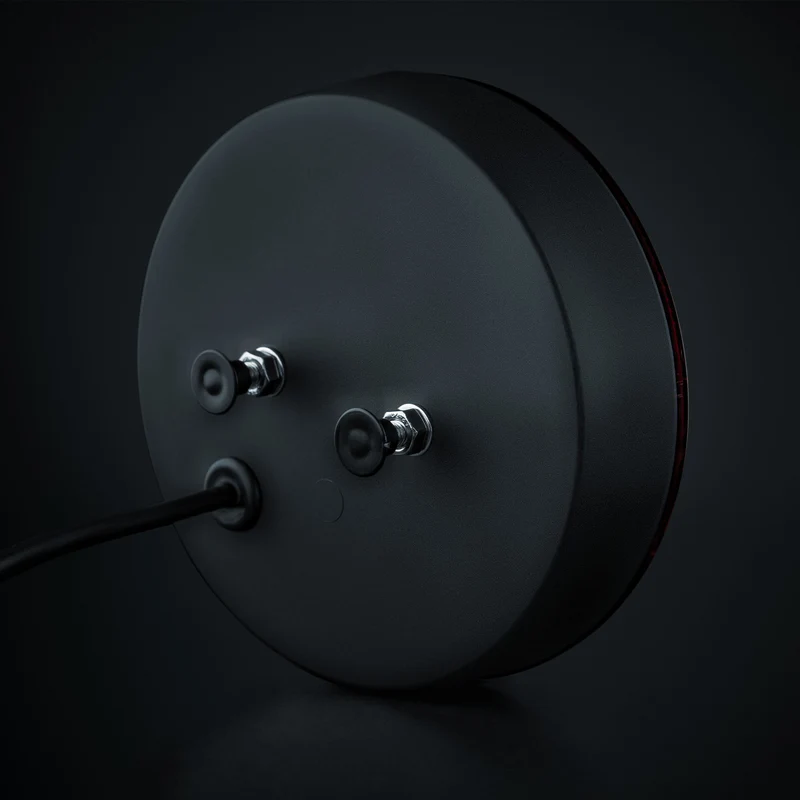

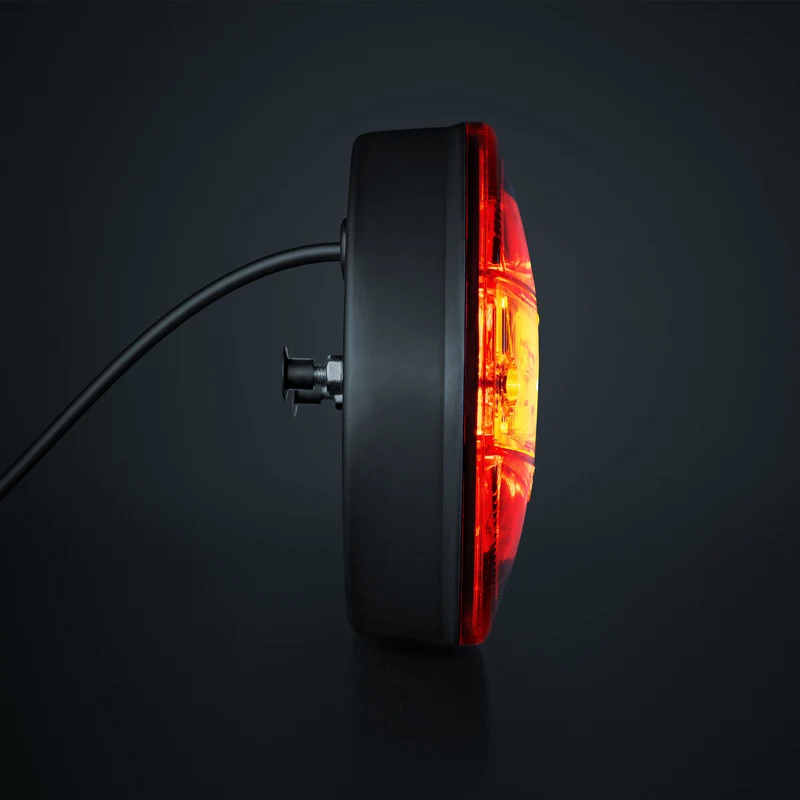

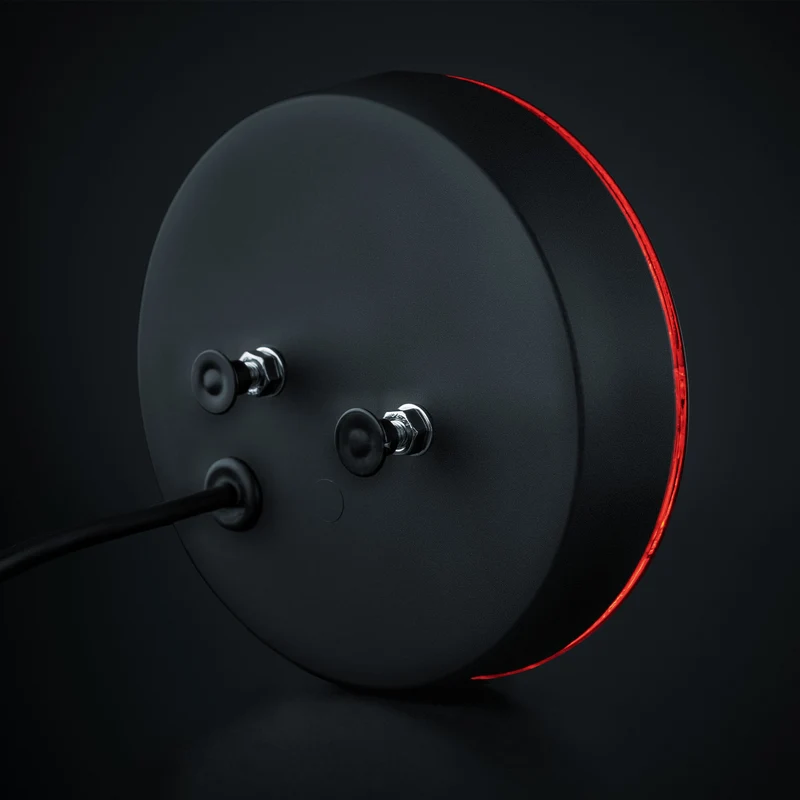

With a 142 mm diameter and 45 mm center-to-center (CC) mounting, this light is easy to install and integrates seamlessly into both modern and classic vehicle designs. Its durable construction ensures long-lasting performance in demanding conditions.

Strands Burger Lamp Technical Specifications

Electrical Parameters

• Voltage (DC): 12–24 V DC
• Power consumption: 2.5 W

Functions

• Indicator
• Brake light
• Tail light

Power consumption by function

• Tail light: 0.3 W
• Brake light: 1 W
• Indicator: 1.2 W

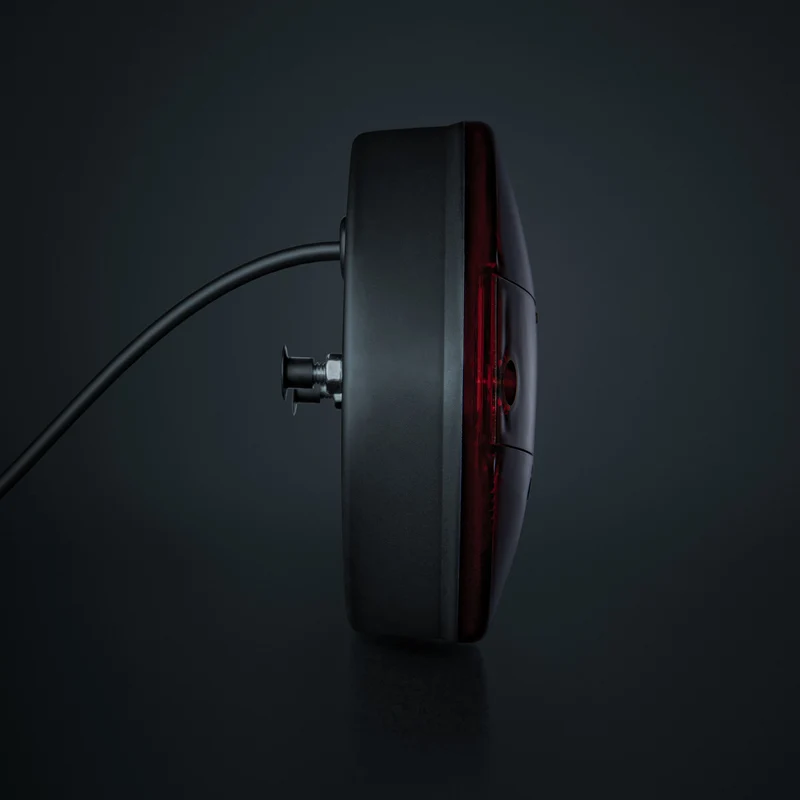

Connection

• Type: Cable
• Cable length: 500 mm

Construction & Materials

• Housing color: Black
• Lens color: Red / Amber
• LED colors: Red / Amber
• Housing material: PA6 (polyamide)
• Lens material: Polymethyl methacrylate

Dimensions & Weight

• Diameter: 142 mm
• Center-to-center (CC): 45 mm
• Weight: 0.39 kg

Environmental & Compliance

• IP rating: IP6K9K
• Operating temperature: -40°C to +40°C
• E-approved: Yes
• ECE approvals: R148 (D), R10.07
