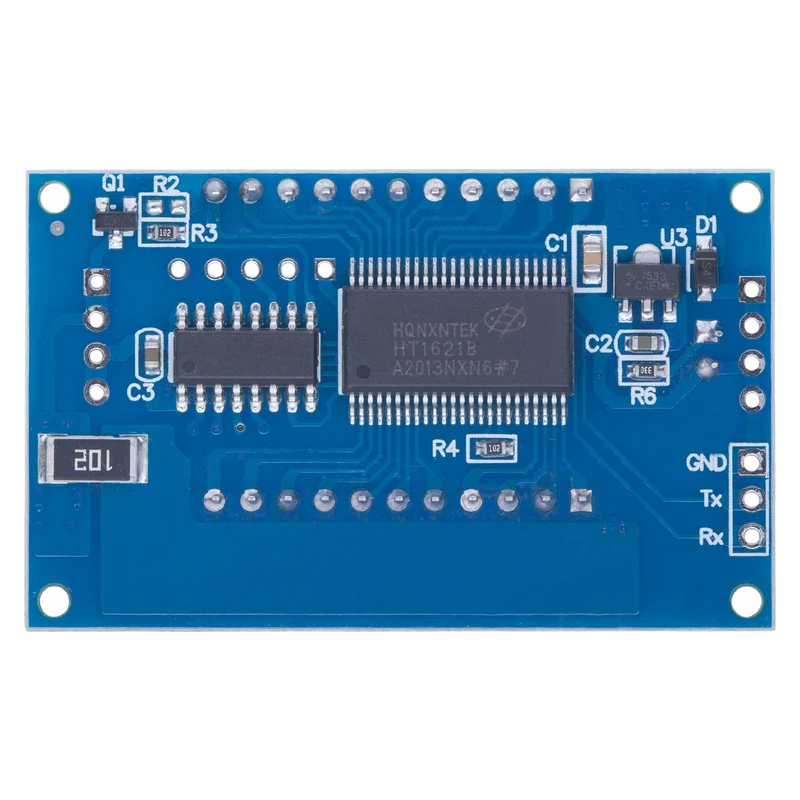

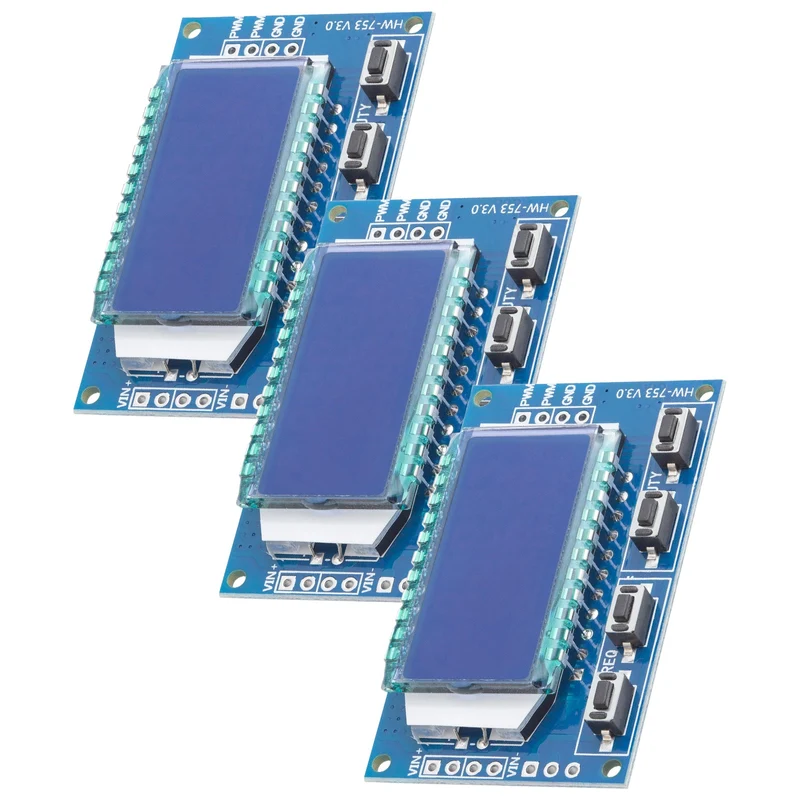

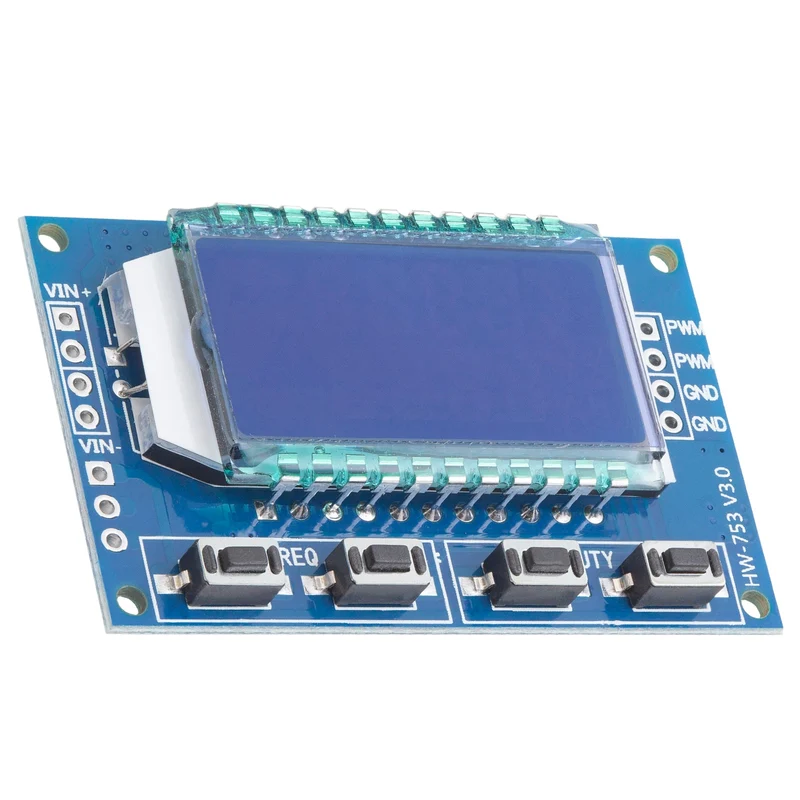

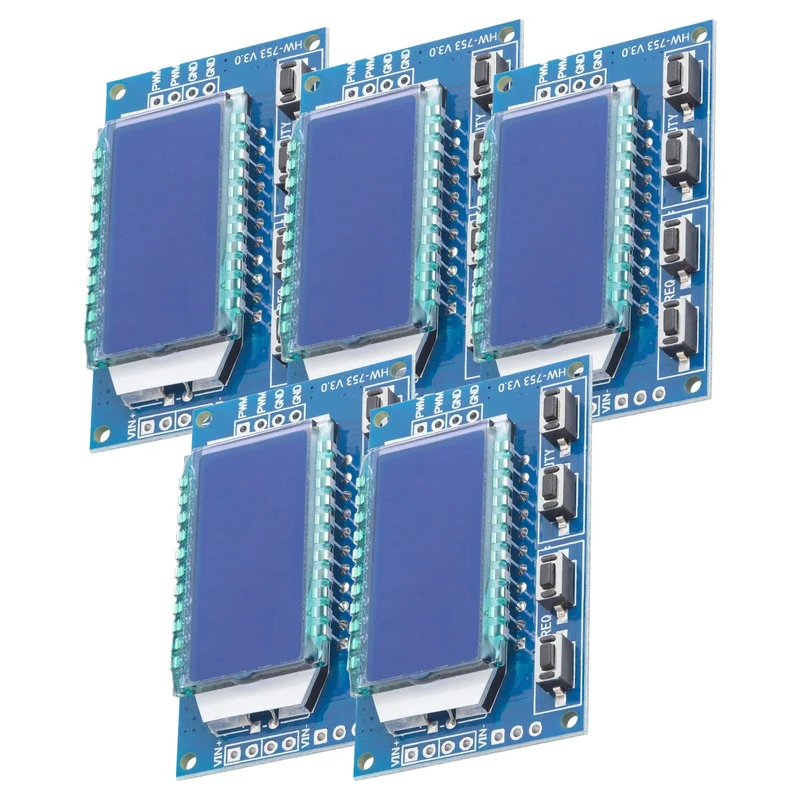

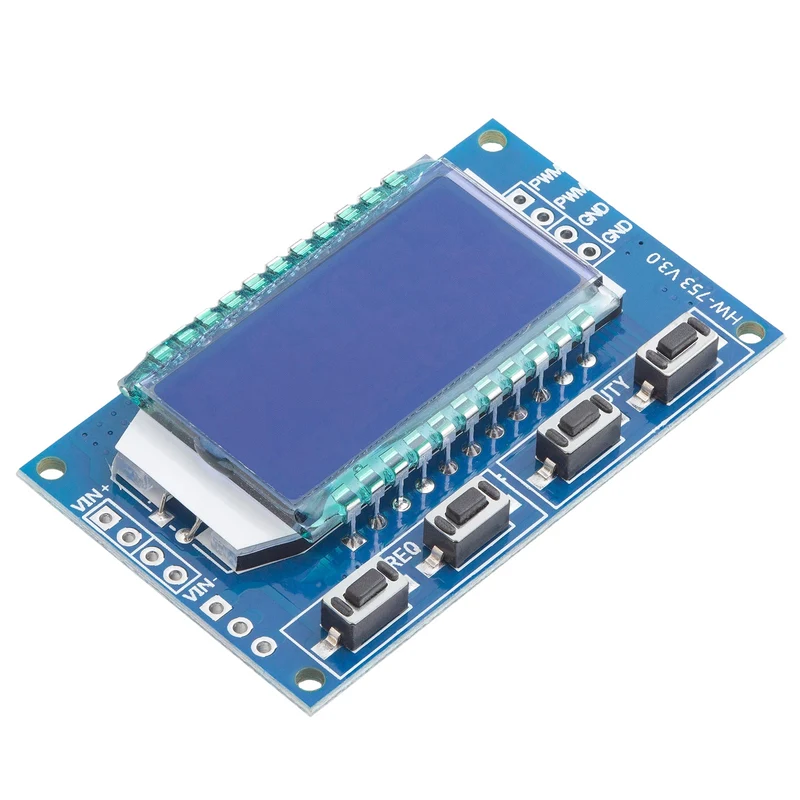

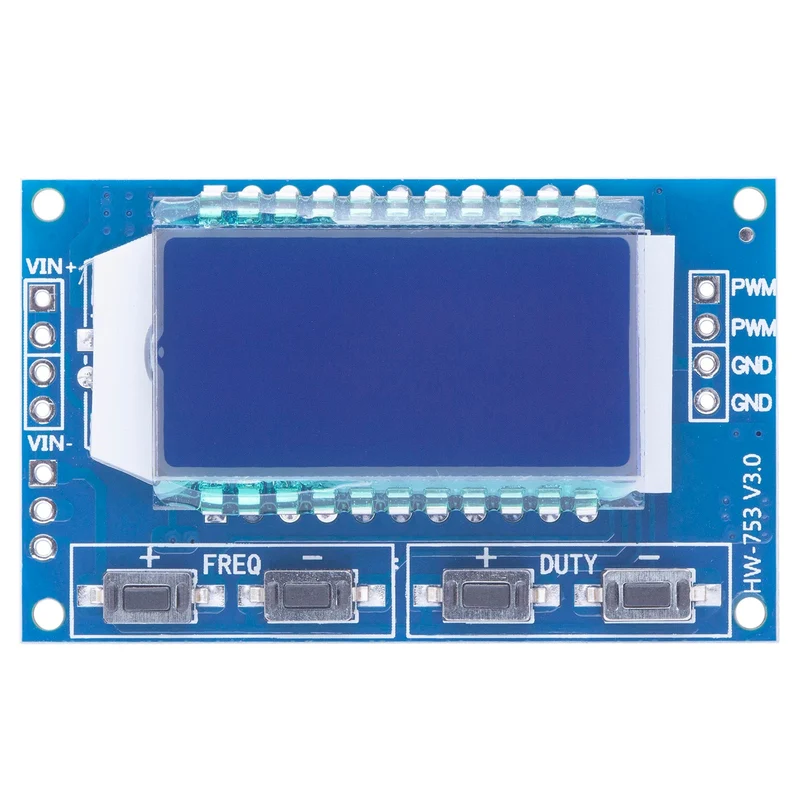

PWM Signal Generator Duty Cycle with 1Hz-150Khz 3.3V-30V Frequency Generator Rectangular Waveform Generator

The AZ-Delivery frequency module has a wide frequency range and is precise. The amplitude of the PWM signal is equal to the supply voltage of the module.

Particularities

• The signal generator has a pulse module
• Generates adjustable pulses for MCU use
• Equipped with LCD display for frequency indication
• Wide frequency range
• High precision
• Four independent buttons
• Simple operation
• No batteries required

Technical specifications

Operating voltage	3.3 - 30V
Frequency range	1Hz - 150kHz
Frequency accuracy	2%
Ambient temperature	-20 - +70 C
Weight of the device	10g

Wide frequency spectrum

This generator can be used as a square wave generator (for the MCU and to control the corresponding circuit).
