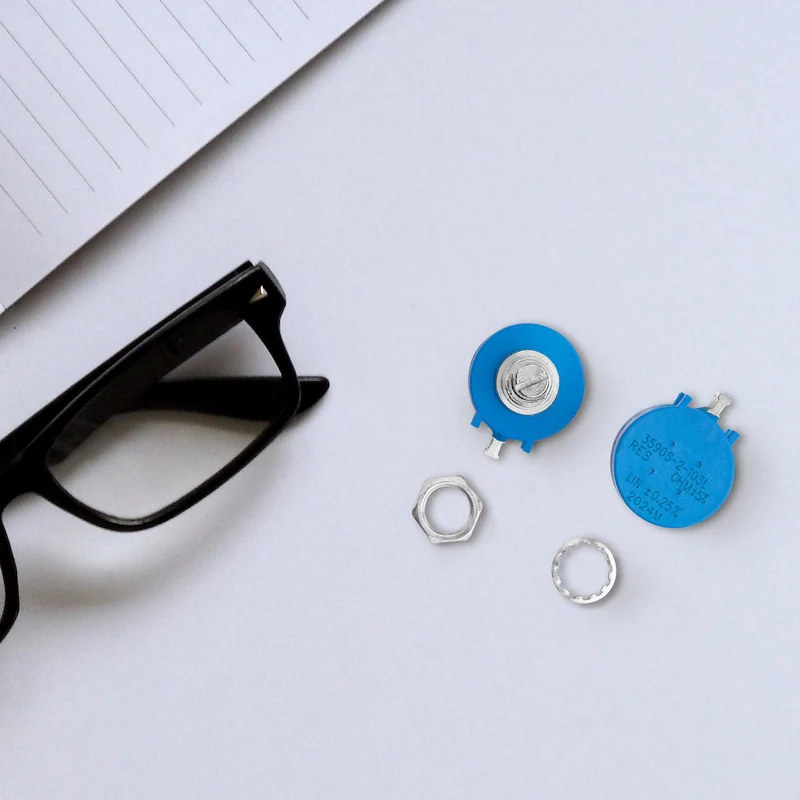

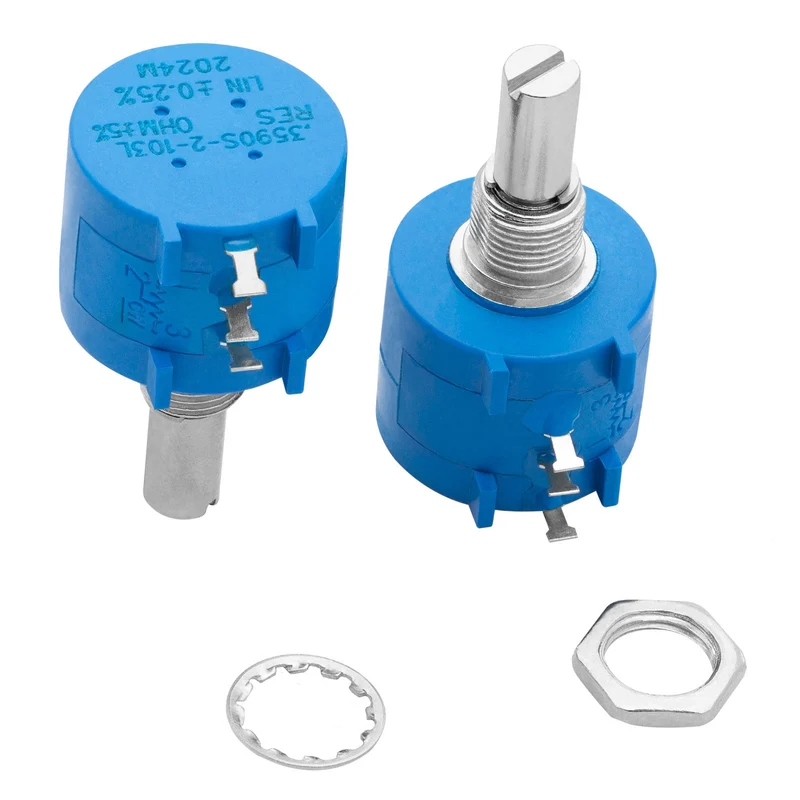

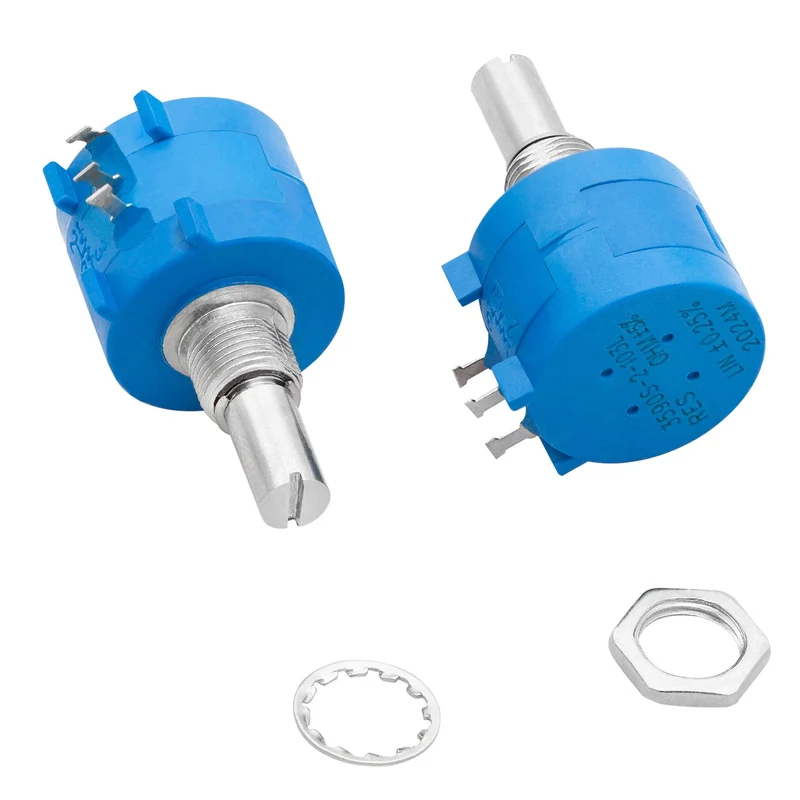

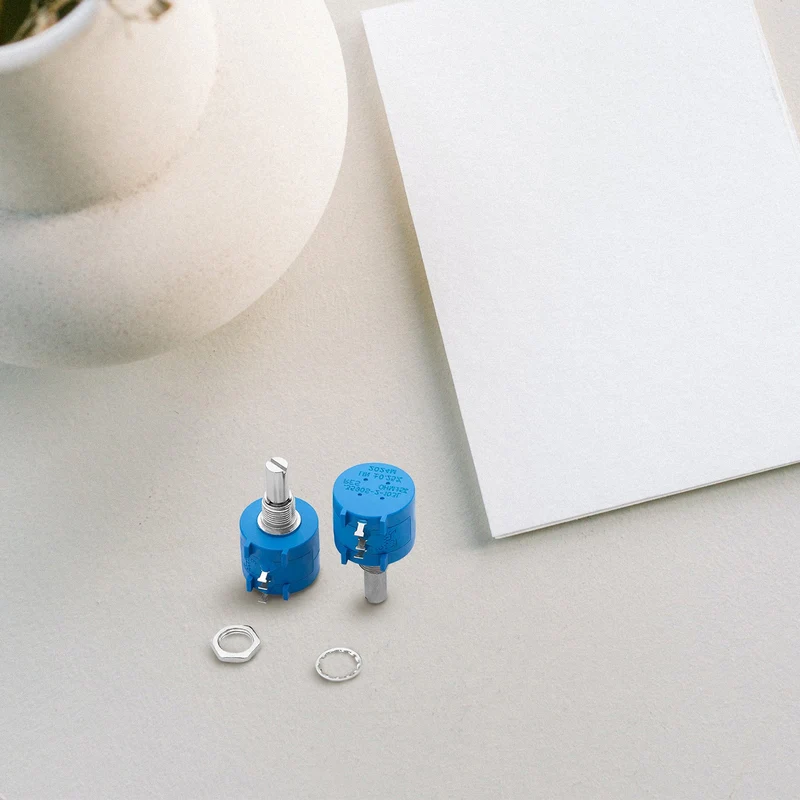

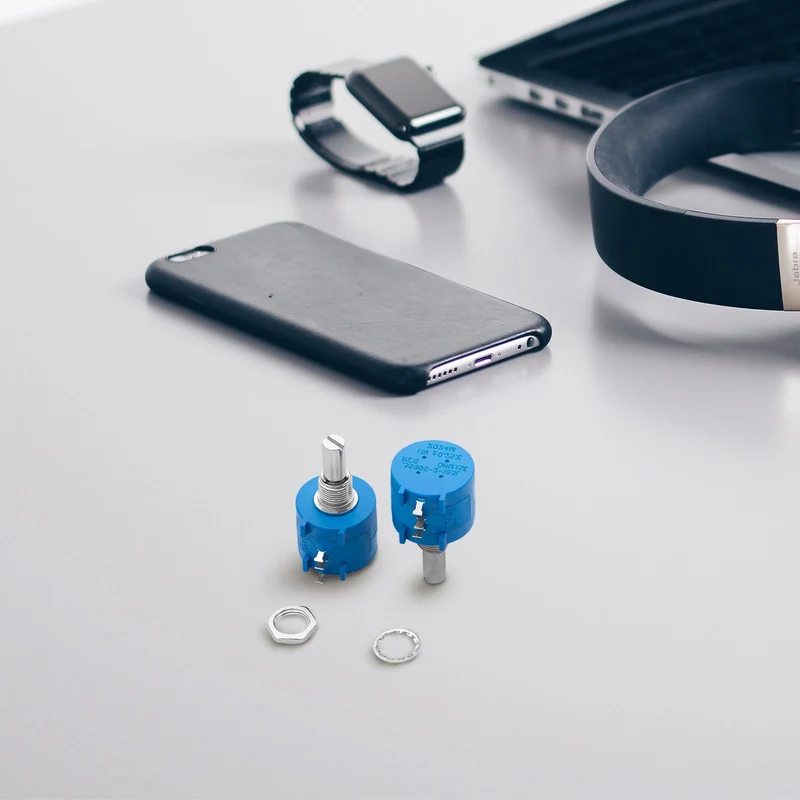

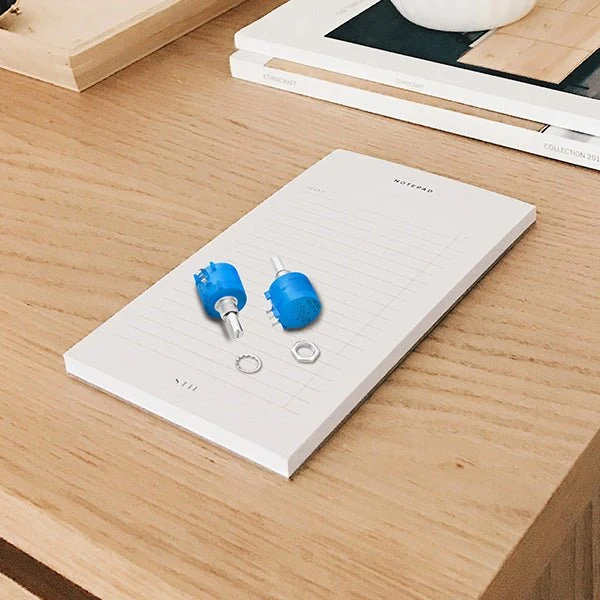

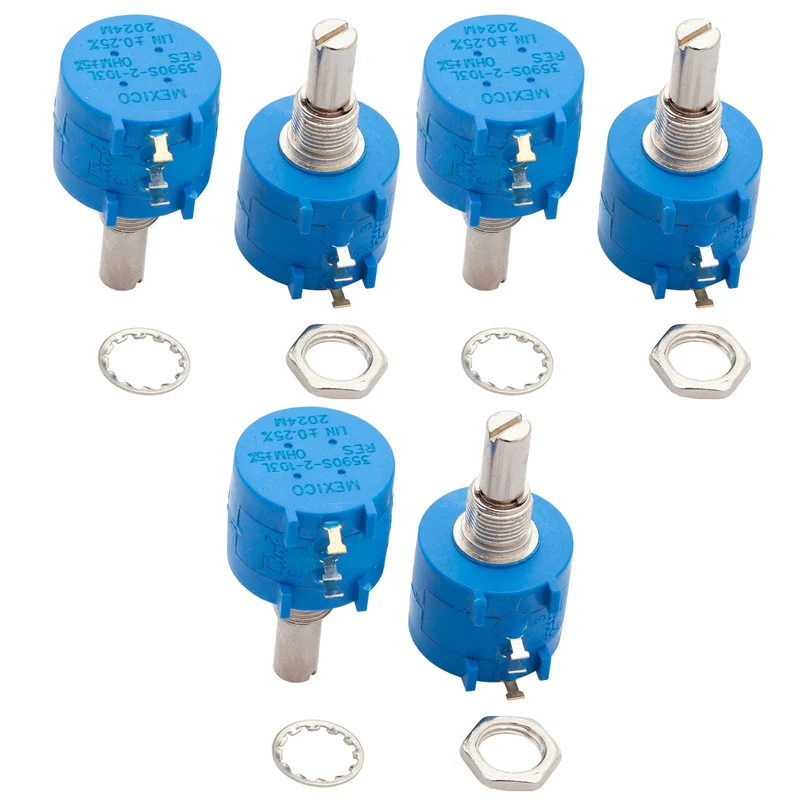

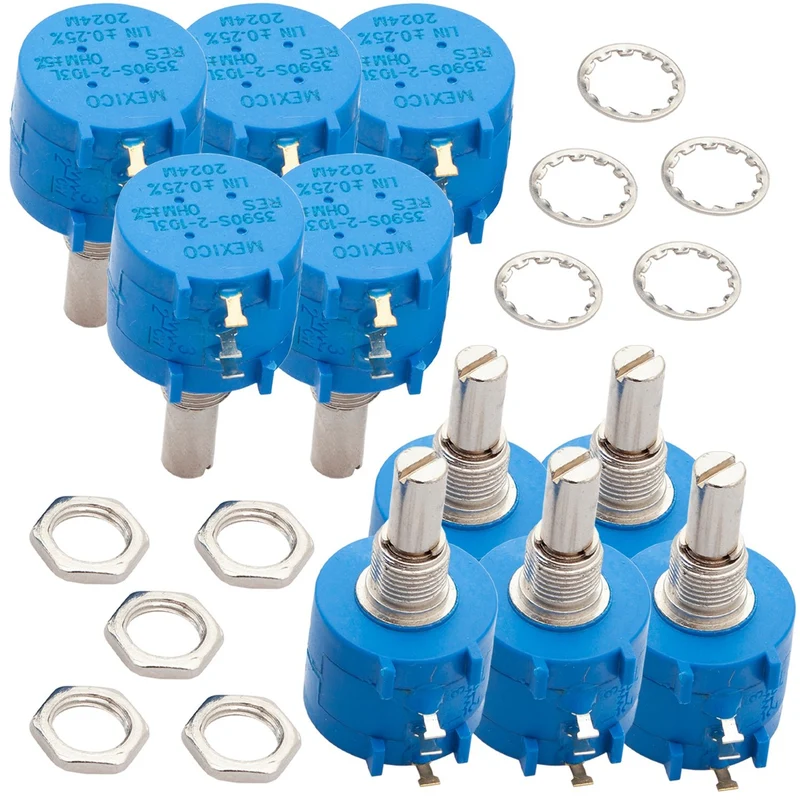

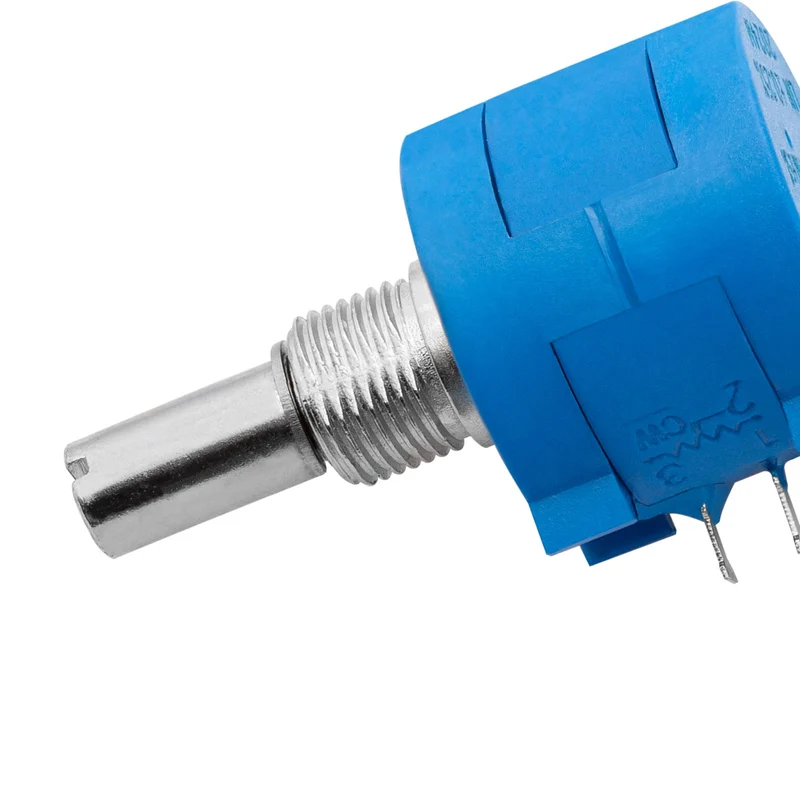

Multi-turn rotary potentiometer with protection resistor 3590S 100K ohm with adjustable resistance

Independent linearity accuracy makes this module a good choice for your electronics project. High precision combined with modern and user-friendly design makes this product easy to use.

Special Features:

• Resistance: 100K Ω
  Windings: 10 windings
  Shaft diameter: 6.3mm, mounting hole: 10mm
  Resistance tolerance: ±5%, independent linearity accuracy: ±0.25%.
  Lifetime: 1,000,000 revolutions

Technical data

Revolutions	10
Lifetime	1.000.000 revolutions
Power	2W
Resistance value	100K Ohm
Resistor tolerance	± 5%
Linearity	± 0,25%
Shaft diameter	6mm/0.24"
Thread diameter	9mm/0.35"
Total length	40mm/1.6"
Lifetime load	1000 hours
Mechanical angle	3600 ° ± 10 °
Operating temperature range	-55 ° - 125 °
Size (without hearing wave)	22x1 9mm/0.9 "x 0.7"(DxH)

Possible risks:

The potentiometer has an extreme durability. However, it should not be stored in rooms with extremely hot temperatures.
