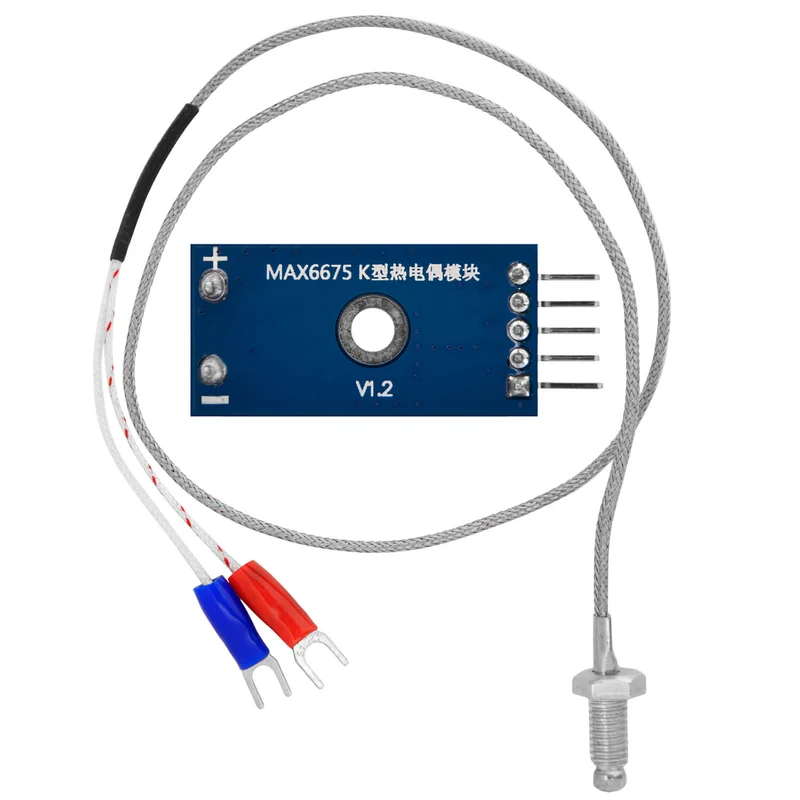

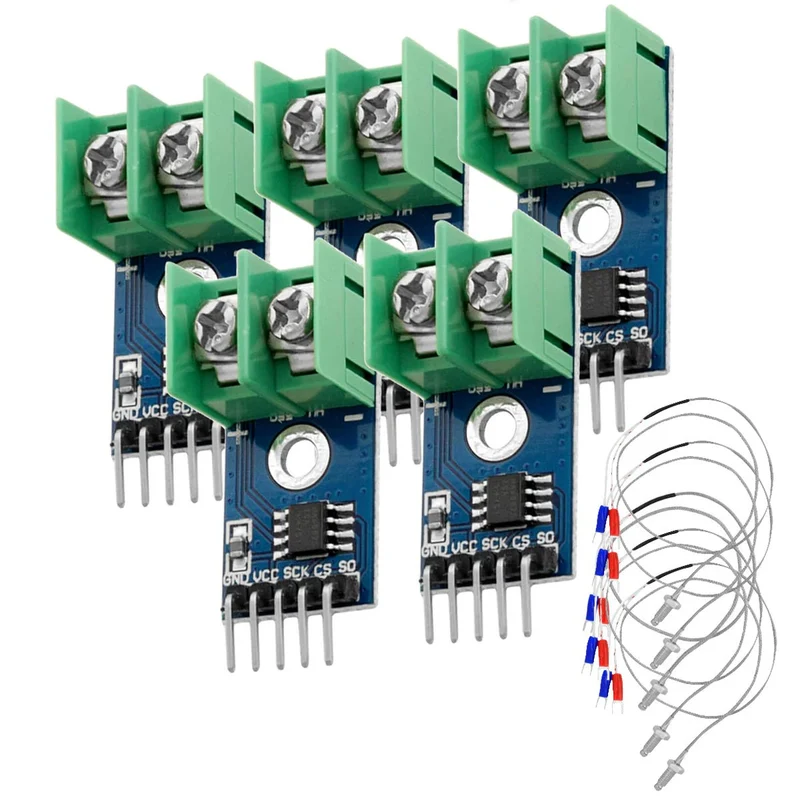

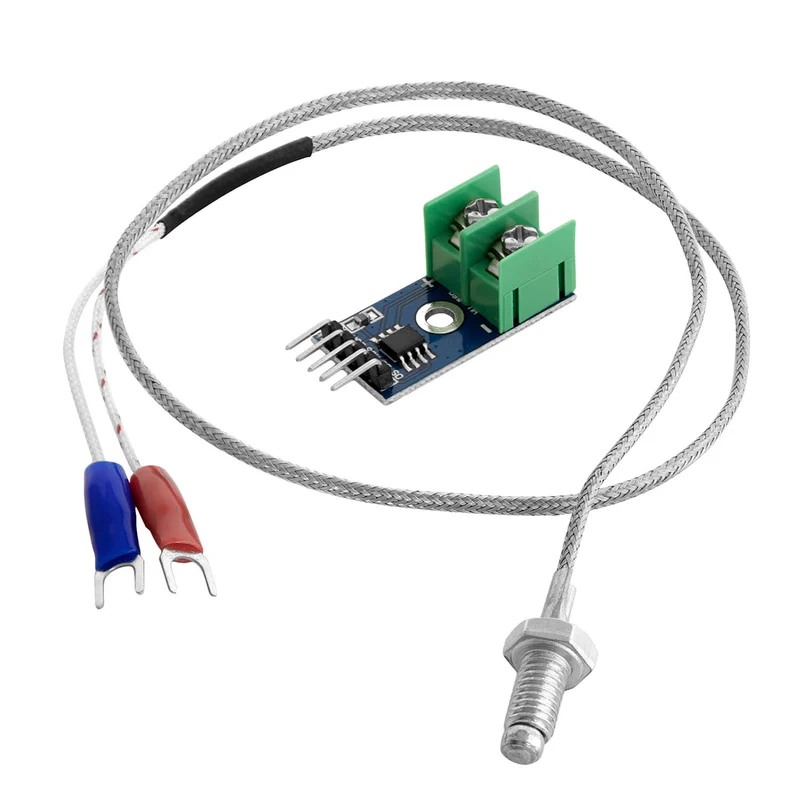

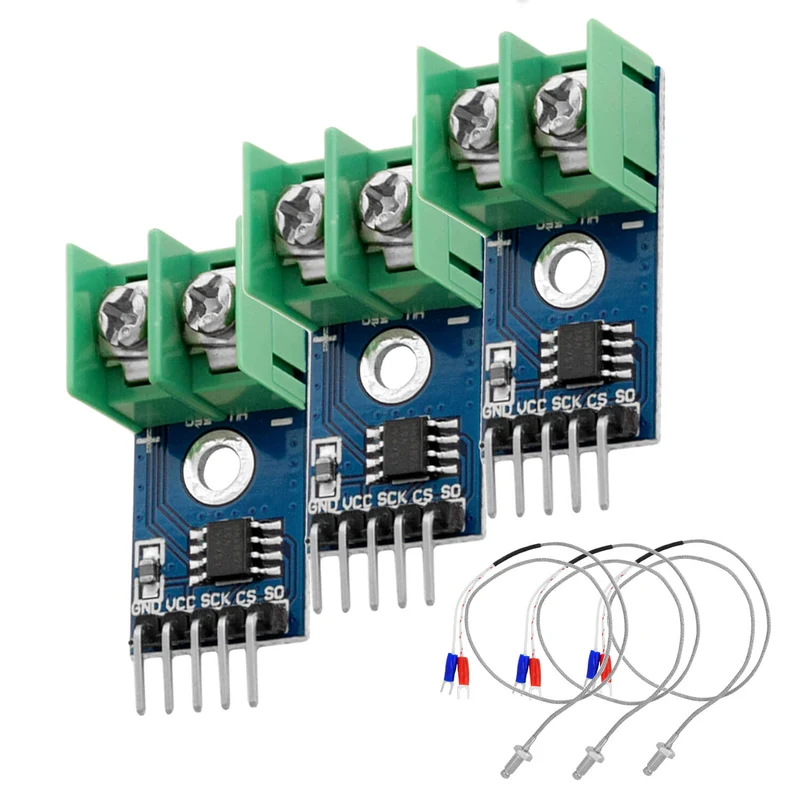

MAX6675 Temperature Sensor with Probe K-Type and Jumper Wire for Raspberry Pi

• The AZ-Delivery MAX6675 comes with a probe that can withstand very high temperatures of up to 1250 degrees Celsius and measure correctly from 0 to 1024 degrees Celsius!
• The resolution of the thermosensor is 0.25 degrees Celsius!
• Operating voltage (module) 3 V to 5.5 V!
• Weight approx. 4 grams and size 15mm x 25mm x 13mm
• Usual high quality and fast delivery from Germany by buying at AZDelivery!

circuit diagram

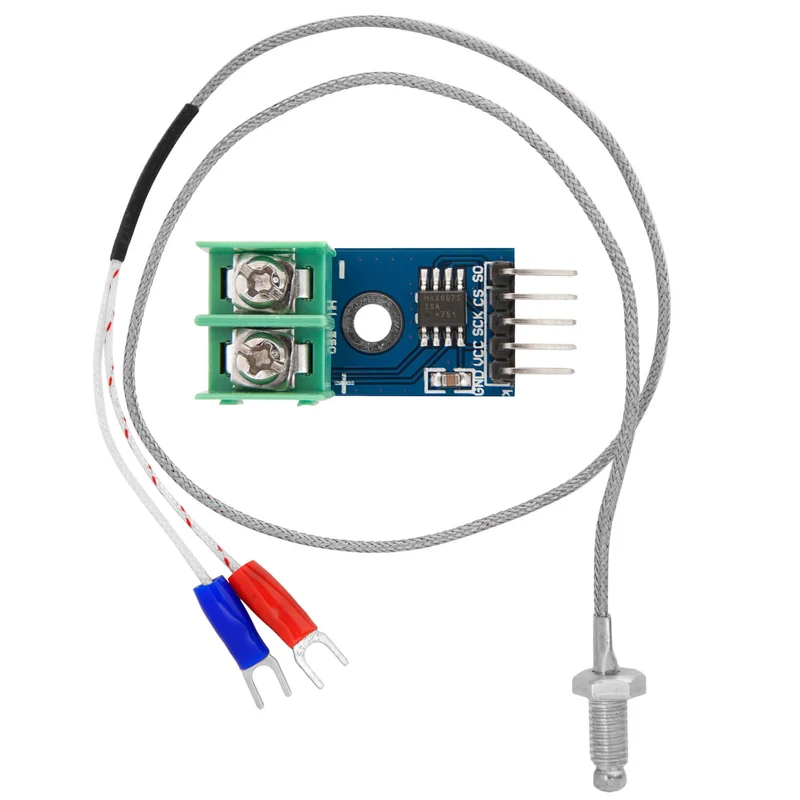

The MAX6675 module has two attachments one to the microcontroller (e.g. Arduino) and one to the sensor ( + and -).

Module Max6675	Arduino Uno
GND (ground)	Gnd
VCC	5V
SCK (serial clock)	10
CS (chip select)	9
So (serial output)	8

Module Max6675	Thermosensor
+	red
–	blue
