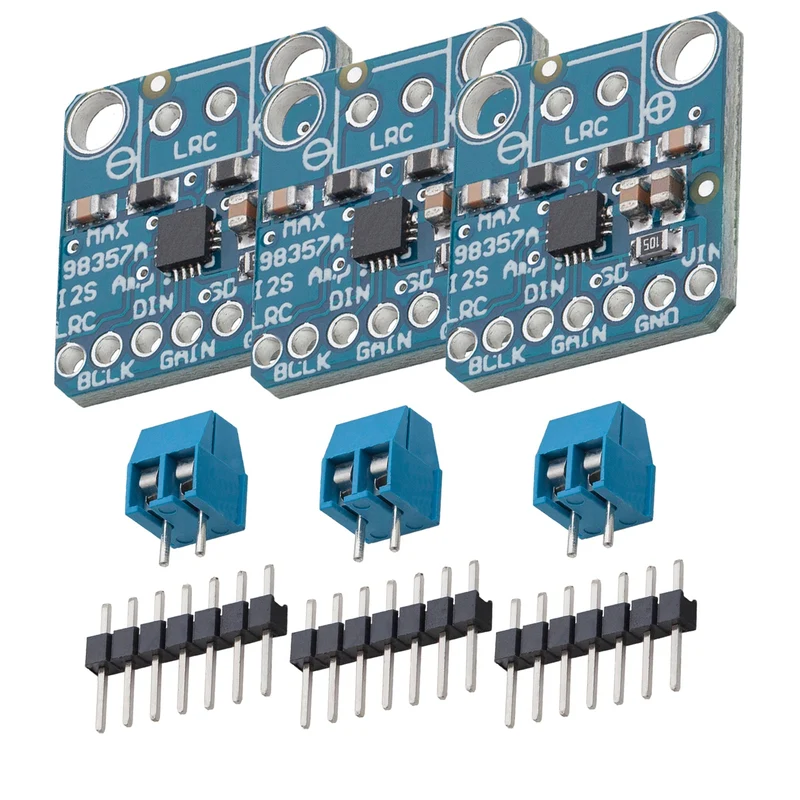

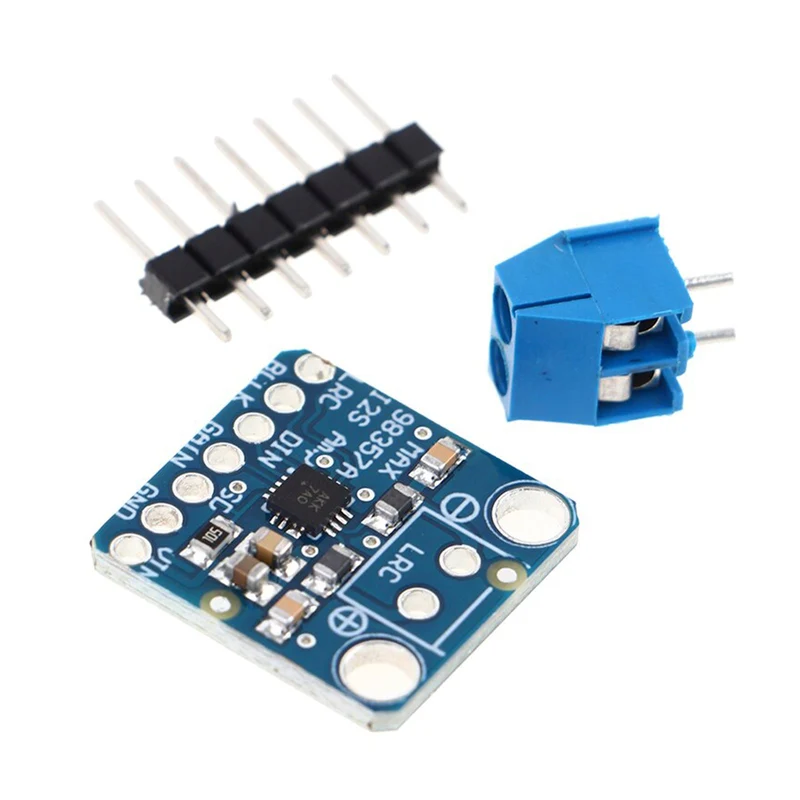

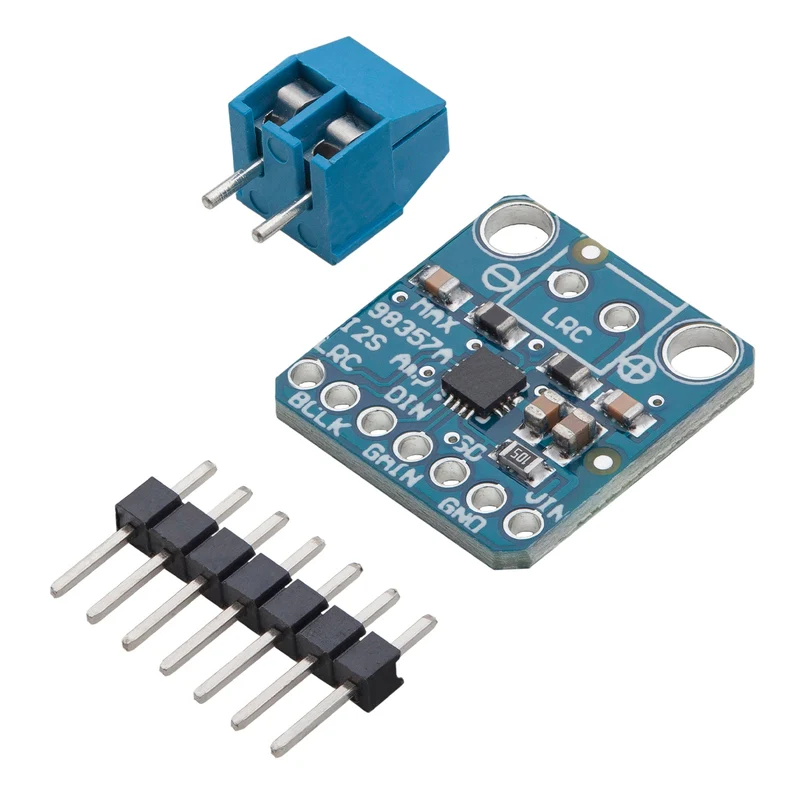

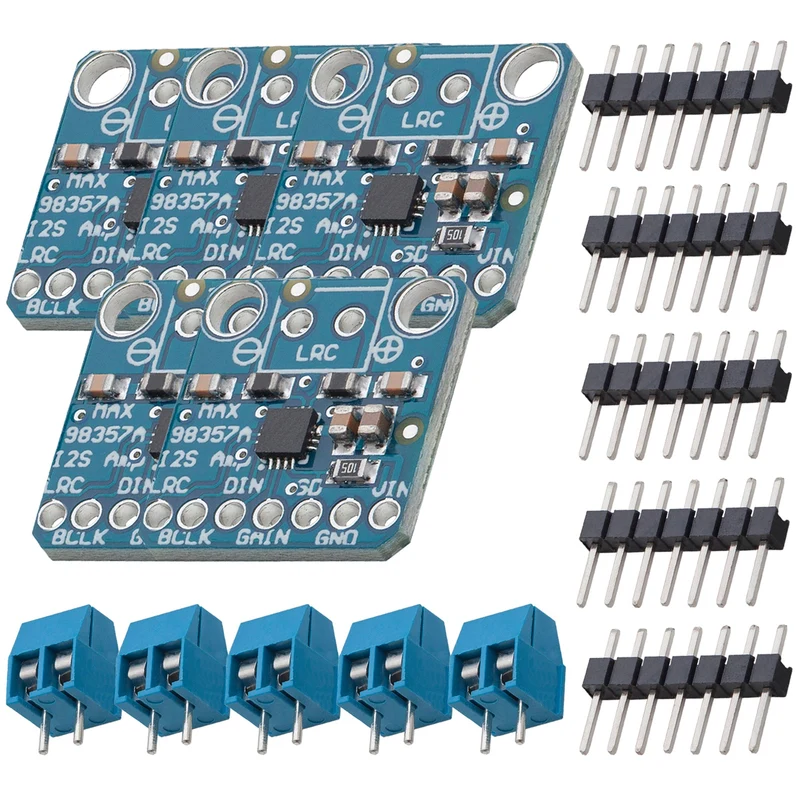

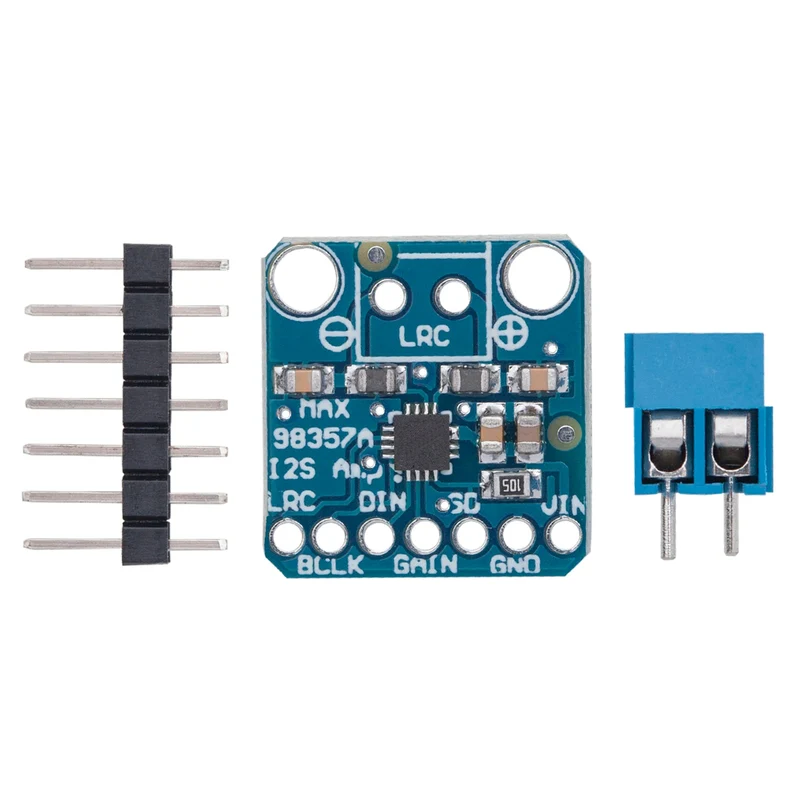

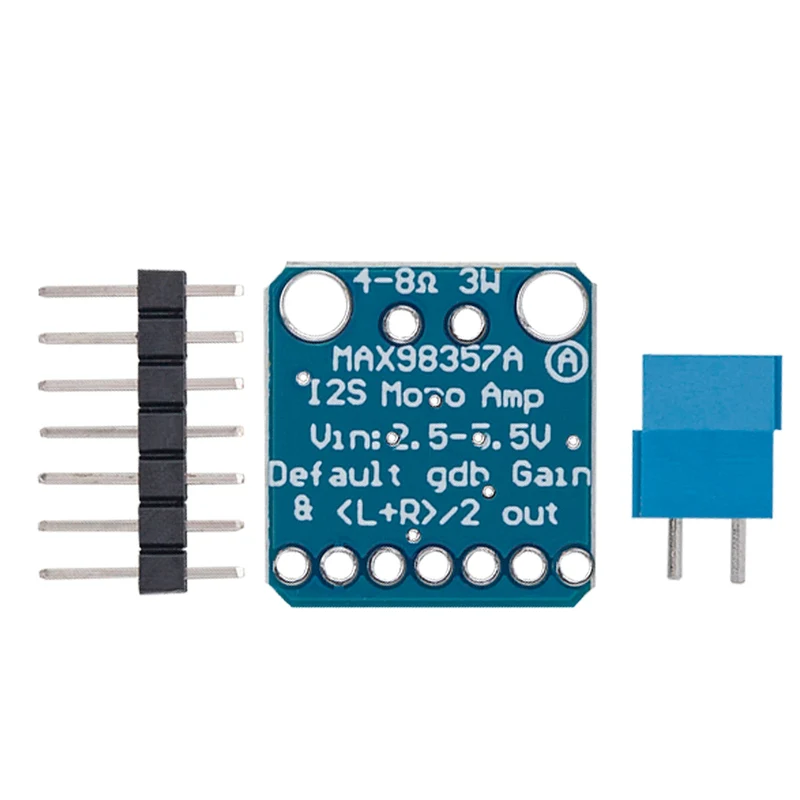

I2S 3W class D Amplifier Breakout Module - Max98357a

The AZ-Delivery DAC Amp Breakout works with the Raspberry Pi and makes the digital audio files ring. The standard I2S audio input not only decodes an analog signal, but is amplified and combined directly into a speaker, with 2 breakouts (I2S DAC + Amp).

Extensive application possibilities The 3W Amplifier allows excellent function with Arduino Zero, microcontroller or microcomputer with I2S audio outputs.
Advanced Technology Built-in thermal and overcurrent protection make this amplifier very suitable for portable and battery-powered projects.

• Particularities

  • A sound protocol that is not to be confused with I2C.
  • The amplification can be manipulated by a gain pin.
  • The speaker can output 3.2 watts of power.

• Details

  • Vin - electricity input (5V)
  • GND, performance negative
  • BCLK - Bit -cycle
  • LRC - left/right clock

• Technical specifications

Operating voltage	2.5V - 5.5V (5V recommended)
Output power	Up to 3W
Impedance	4 - 8 Ohms
PSRR	77 dB type @ 1kHz

Logic level	3.3V / 5V
Interface	I2S
Dimensions	19 x 18 x 3 mm
Weight	approx. 3G
