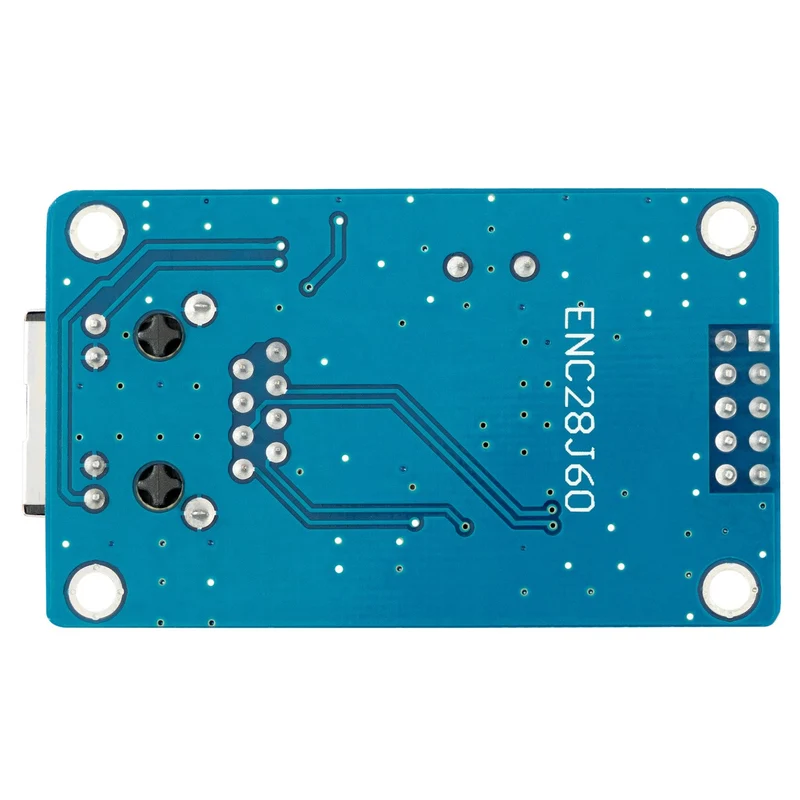

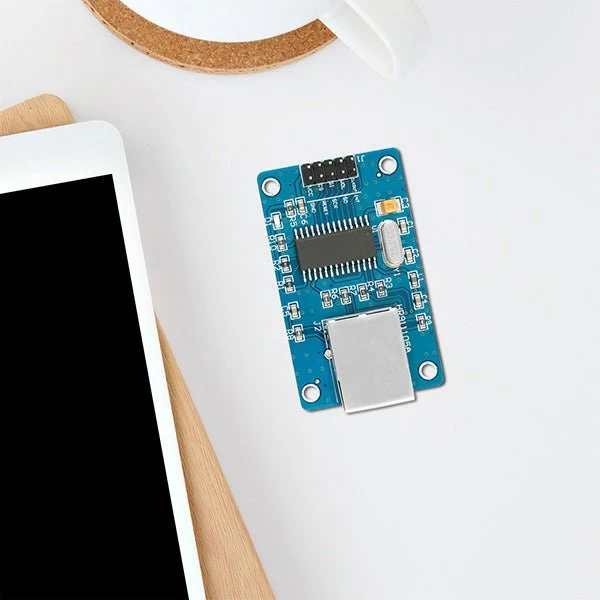

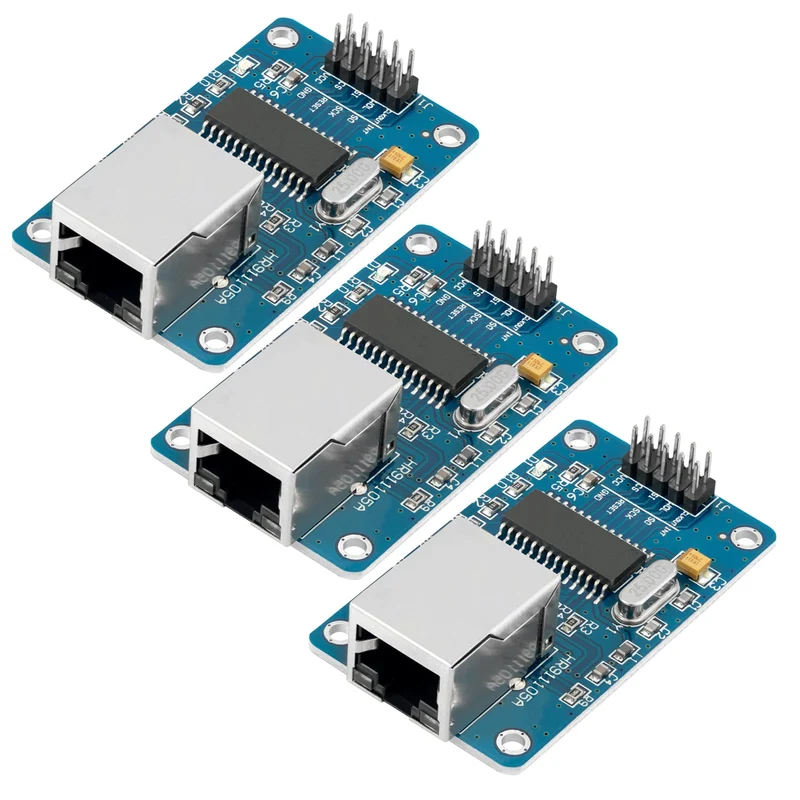

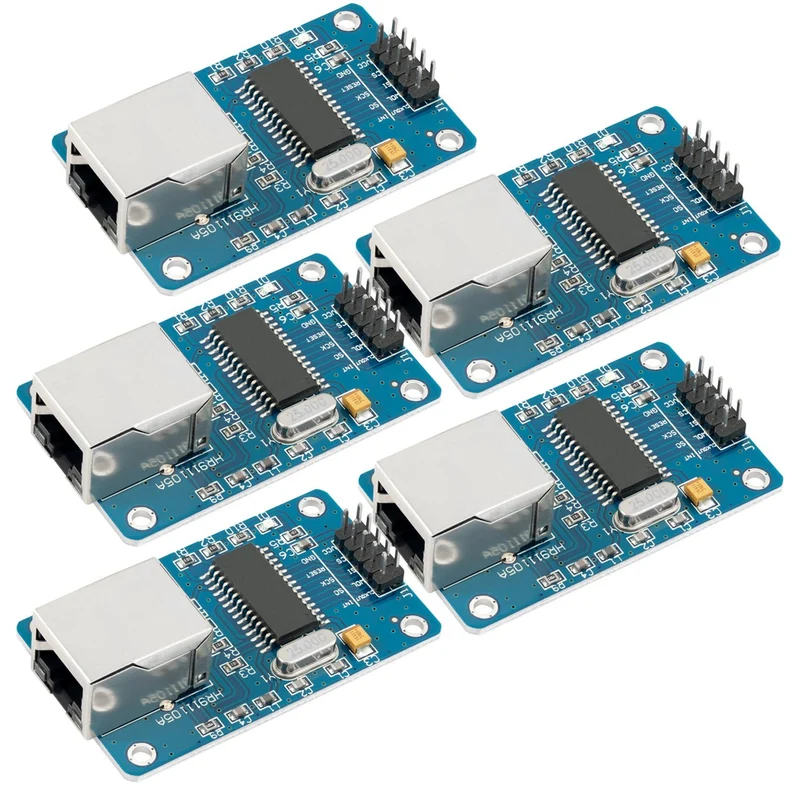

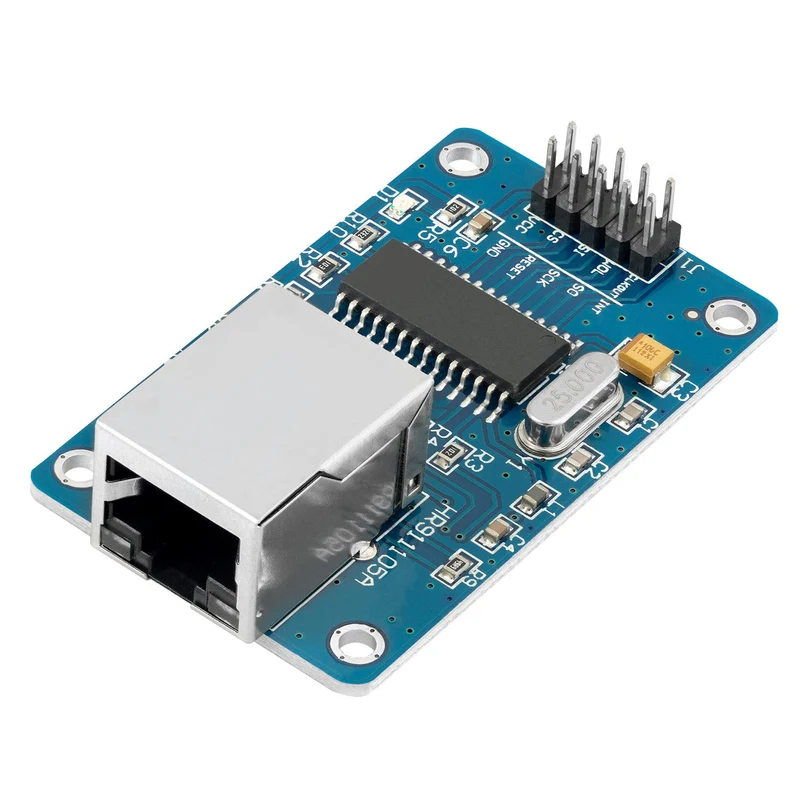

EnC28J60 Ethernet Shield LAN Network Module Compatible with Arduino

This network module is ideal for establishing a network connection with a microcontroller in a simple way. It is equipped with a conventional RJ45 network jack and an ENC28J60 Ethernet controller. So you can set up a small web server, a chat server or a telnet client. The network module can be easily attached via the 10 socket pins. Dupont cables can also be used for a test setup.

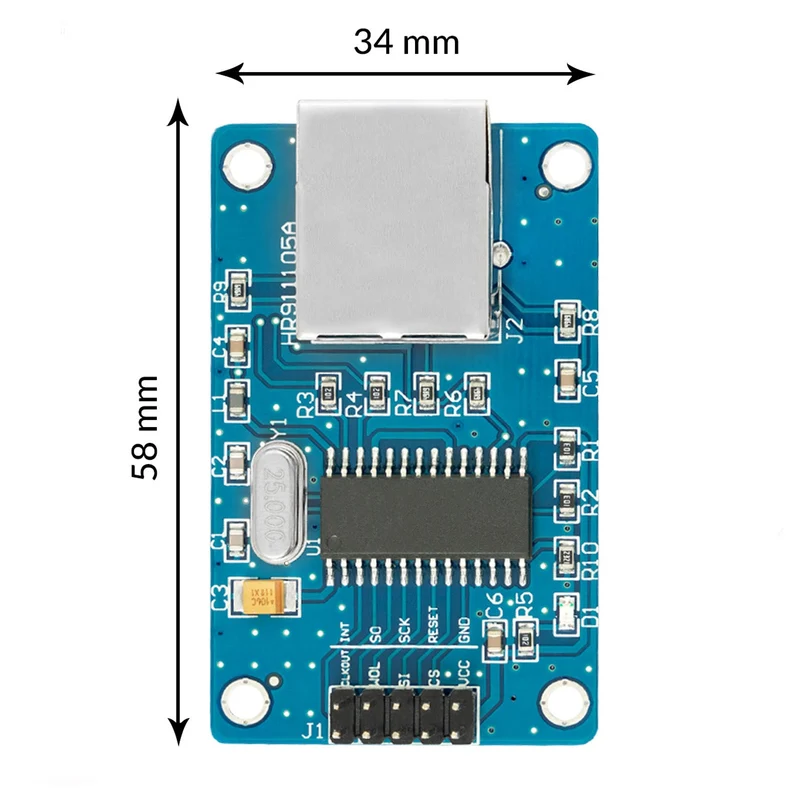

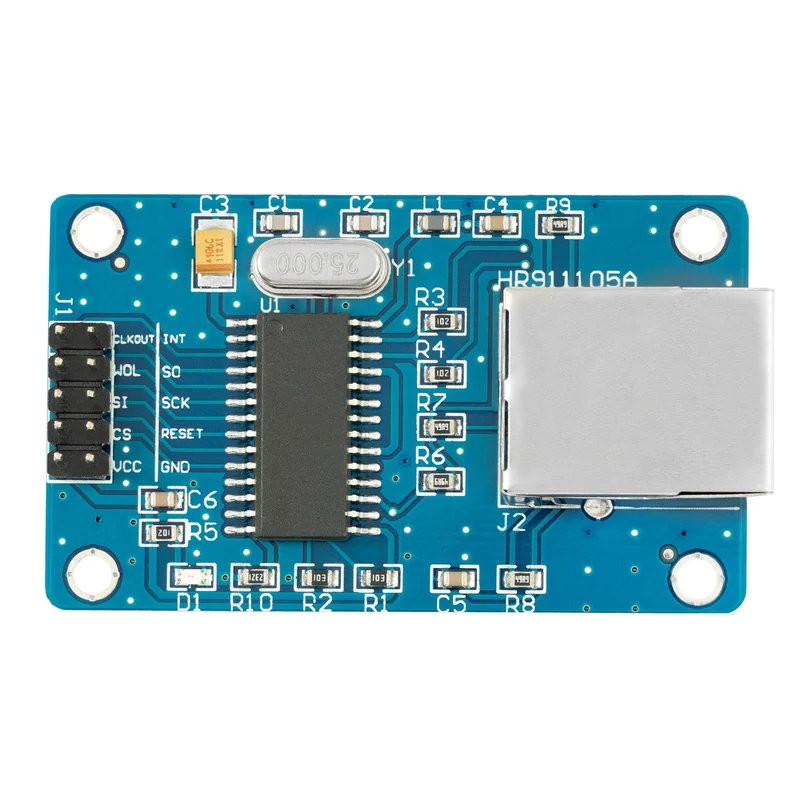

Pin assignment
The pinout on the ENC28J60 network module is as follows:

• CLKOUT: Clock output
• WOL: Wake on Lan
• SCK: Serial clock input
• SI: Serial data input
• CS: Chip select
• VCC: Supply voltage +5V
• INT: Interrupt
• SO: Serial data output
• RESET: Reset
• GND: Ground (GND)
