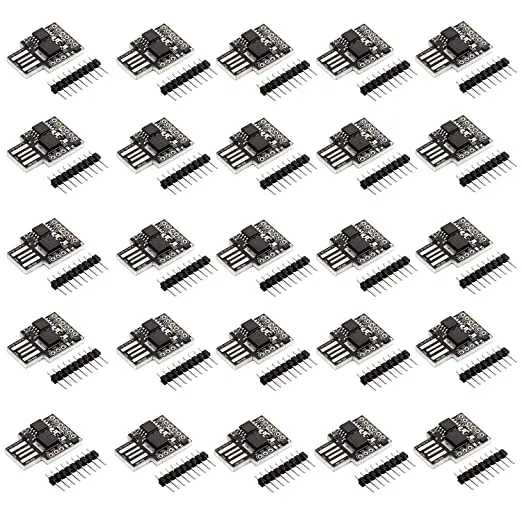

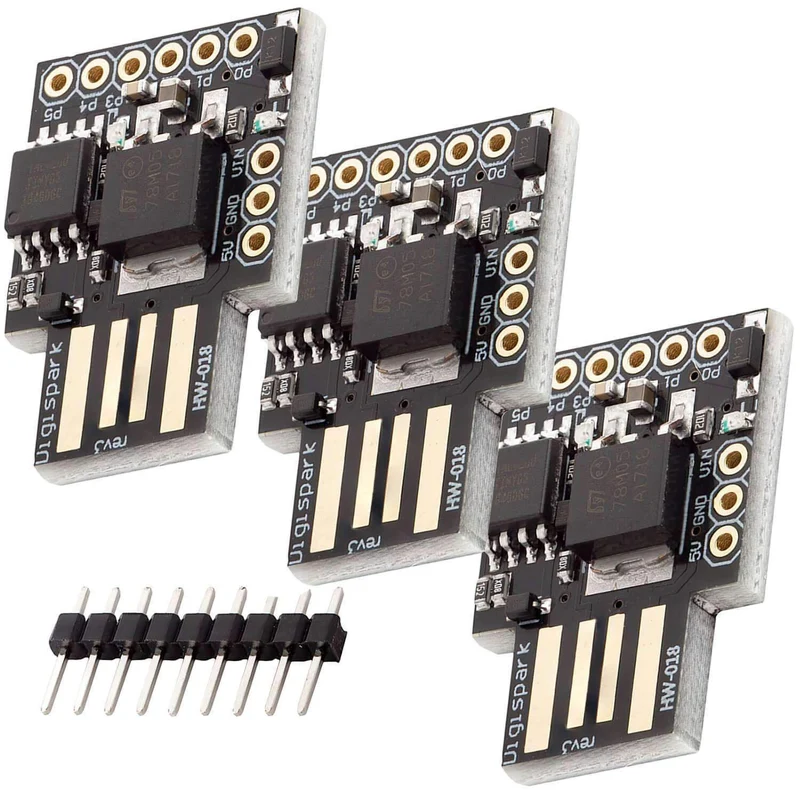

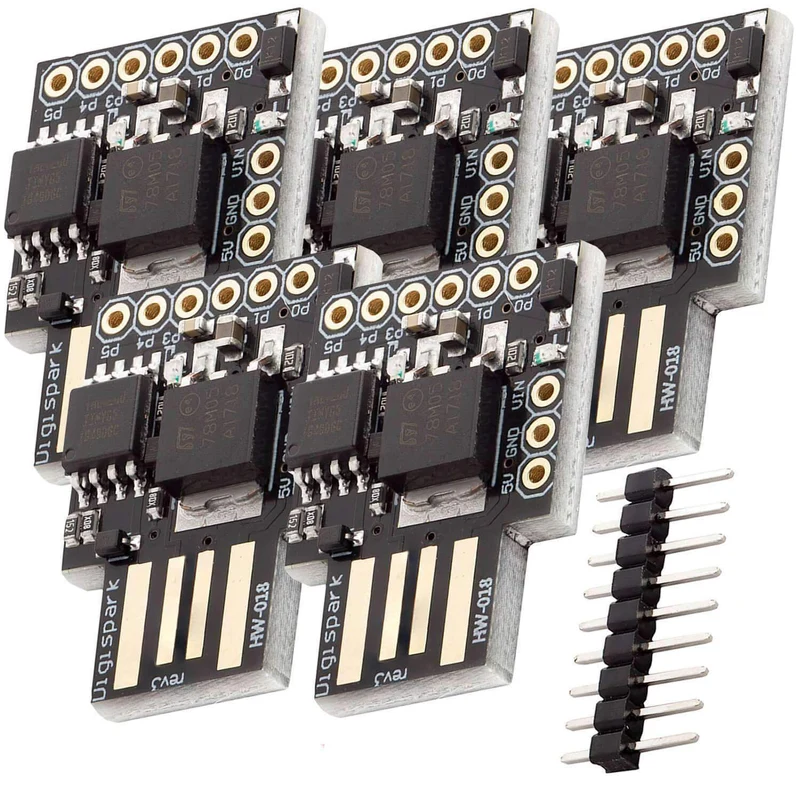

Digispark Rev.3 Kickstarter with ATTiny85 and USB compatible with Arduino

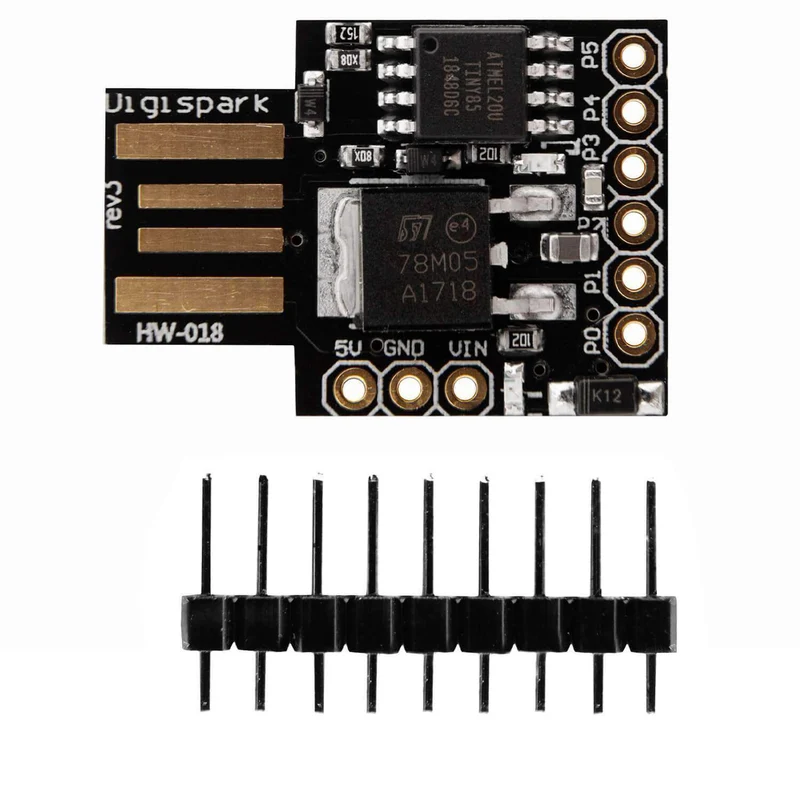

The Digispark is probably one of the most compact and smallest microcontrollers currently available. The AZ-Delivery Digispark with ATTiny85 has a USB connector directly on board and can be connected directly to a USB port without any additional cable. The integrated ATTiny85 is supplied with power directly via the USB port.

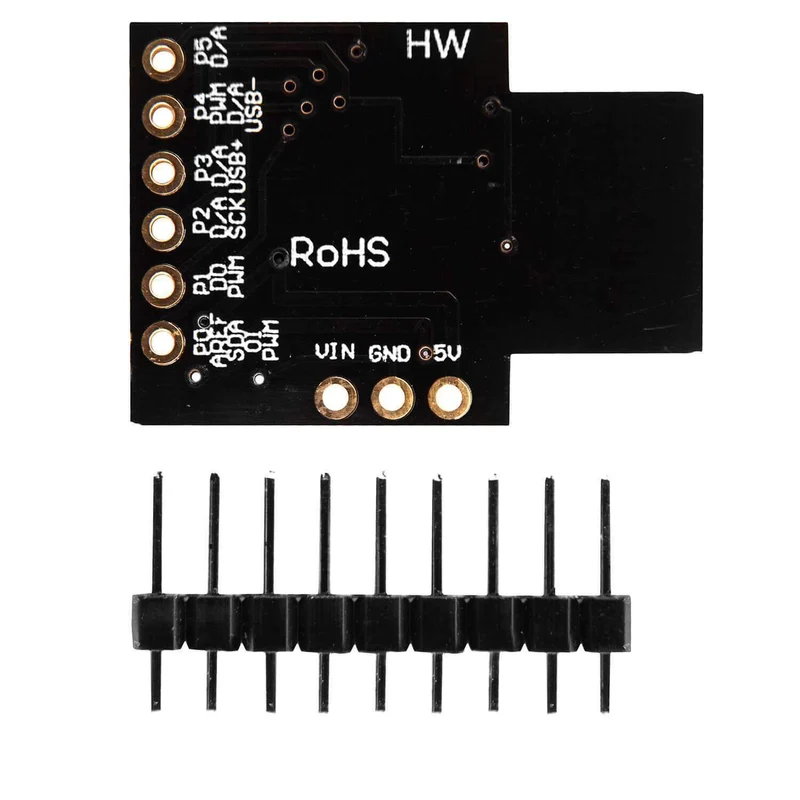

The Digispark also has 6 freely programmable GPIO connections that can be programmed with the familiar Arduino IDE programming environment. There is 8kB of memory available for your own programs. In addition to the 3 further pins on the board, which can be used for an external power supply, the ATTiny85 supports full SPI and I2C interfaces.

Special features

• On-board USB for easy programming by plugging directly into the PC or with a standard USB extension cable.
• The high-performance and low-power 8-bit microcontroller chip is perfect for any type of project.
• 8kB system-internal programmable flash memory for program storage.
• Compatible and reliable connection.

Technical data

Dimensions	20 x 19 x 6mm (0.8x0.7x0.2in)
Operating voltage	2.7V - 5.5V
External supply voltage	6V - 12V (VIN pin)
Operating temperature	-40°C to 85°C
Input/output pins	6 multi-purpose pins (analog, digital)
Interface	SPI, I2C
Memory capacity	8kB
Low power consumption	active mode: 1MHz - 1.8V, 300uA power-down mode: 0.1uA at 1.8V

High performance - low power consumption

Our DigiSpark module is equipped with a powerful 8-bit microcontroller that consumes little power despite its high performance.

Quick start guide

When you purchase one of our high-quality products, you will also receive an e-book for a quick introduction to the world of microelectronics.
