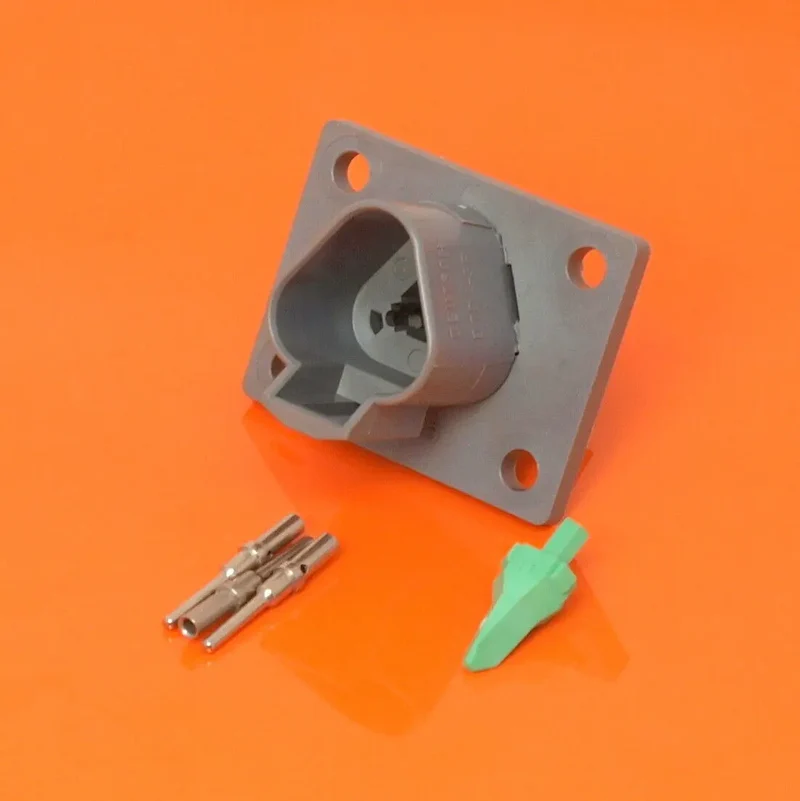

DEUTSCH DT Connector Receptacle with Flange Mount / 3 Way

DEUTSCH® DT Connector Receptacle / 2 Way Flange Mount Receptacle / DT04-3P-L012

These original brand Deutsch DT Series connectors offer field proven reliability, durability and premium quality. This receptacle has a flanged mounting bracket for surface mounting on panels.

These plugs are supplied with standard Size 16 Solid Contacts (0462-201-16141). The size 16 solid contact is for use use on wires from 20-16 AWG (0.5-1.5mm²).  A crimper for the solid contacts is available here.

The DT Series offers the user the ability to use multiple size contacts (Size 14, 16 & 18), each with a 13 amp continuous capacity, within a single shell.

Each 3 Way Connector Receptacle Contains:

• 1 x DT04-3P-L012 Receptacle Housing
• 1 x W3P Receptacle Wedgelock
• 3 x 0460-202-16141 Pin Size 16 Terminals
