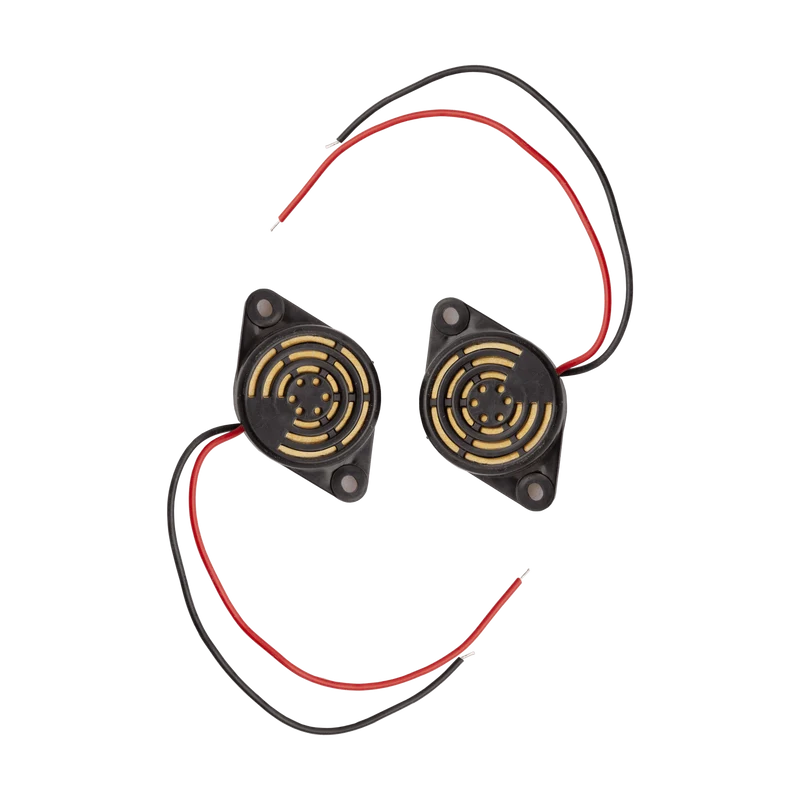

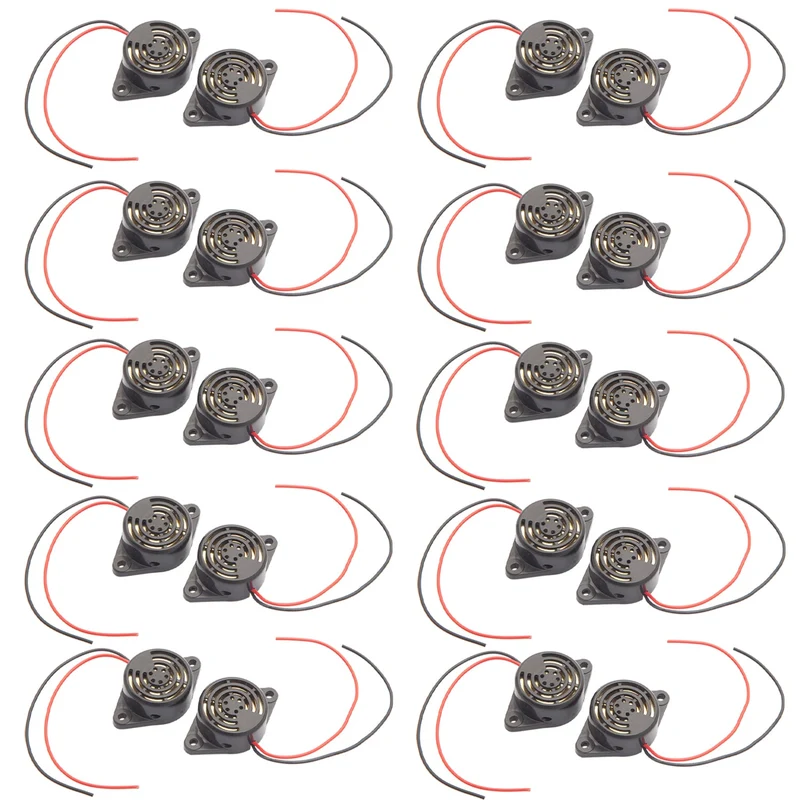

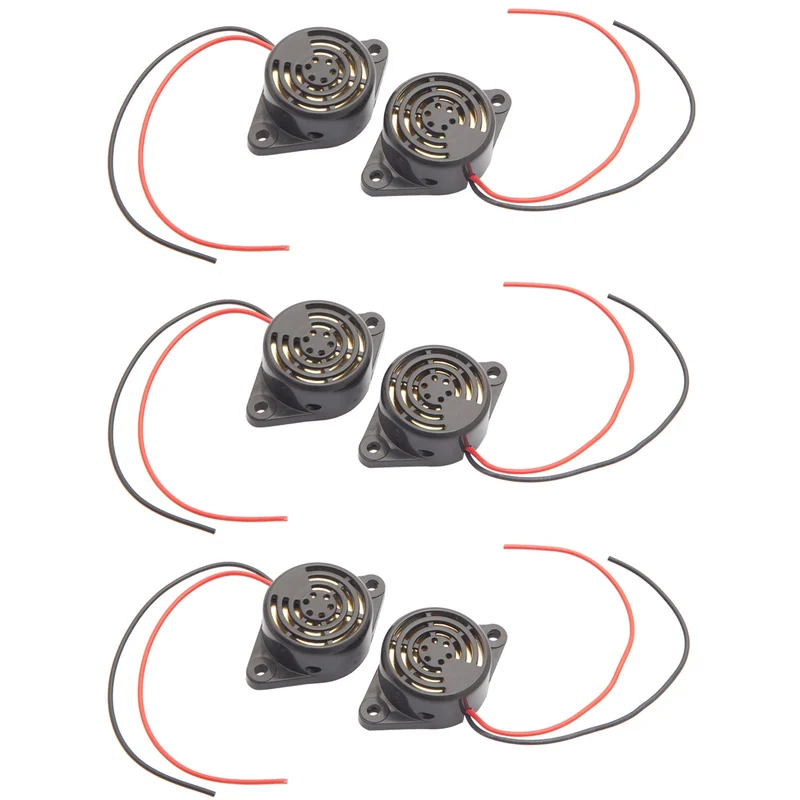

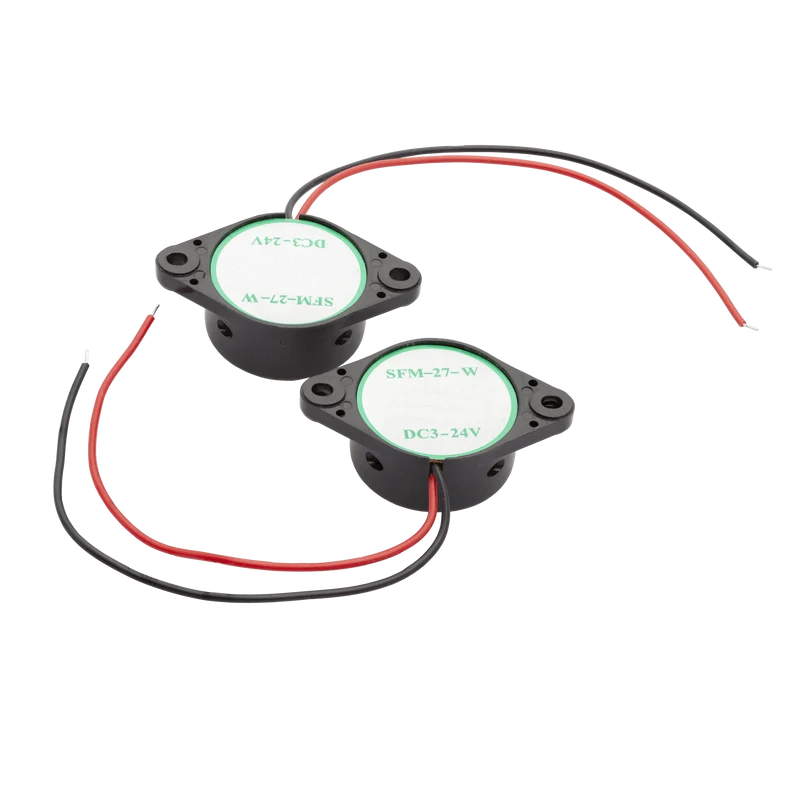

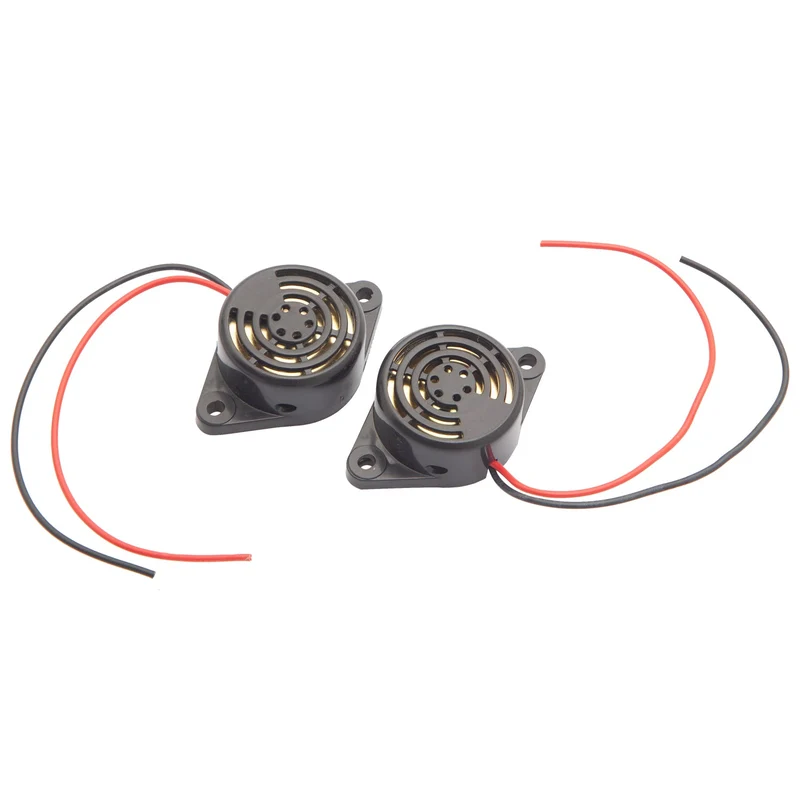

Buzzer electronic signal tone alarm DC3-24V 95dB with continuous signal tone

The cable length of the buzzer, which is about 90 mm, is more than enough to bridge the distance for proper connection. The high-quality materials from which the product is made allow the alarm to last for a long time.

Special features:

• Wide voltage range
• Rated current<30mA
• Sound pressure level (dB) <95
• High resonant frequency (Hz)
• Working temperature -20 - 60°C

Technical specifications

Colour	Black-and-white
Alarm diameter	22mm/0.86 "
Alarm height	10mm/0.39 "
2 fastening holes	30mm/1.18 "
2 wires length	90mm/3.54 "
Type of the Summers	Piezoelectric
Sound pressure level	<95dB
Operating voltage	12V DC
Operating voltage	3 - 24V
Max. Nominal current	30mA
Frequency	3000 ± 500Hz
Adhesive	Stick circuit built-in fastening holes
Sound	"Di" continuously

Simple design

The alarm is complex and yet so easy to use. The design is not complicated and user -friendly and is also suitable for newbies.
