Fornitore: Truck Electrics

6 Way Standard Blade Fuse Box with Labels / Stud Connections

6,42 €9,85 €34% OFF
Quantità

Descrizione

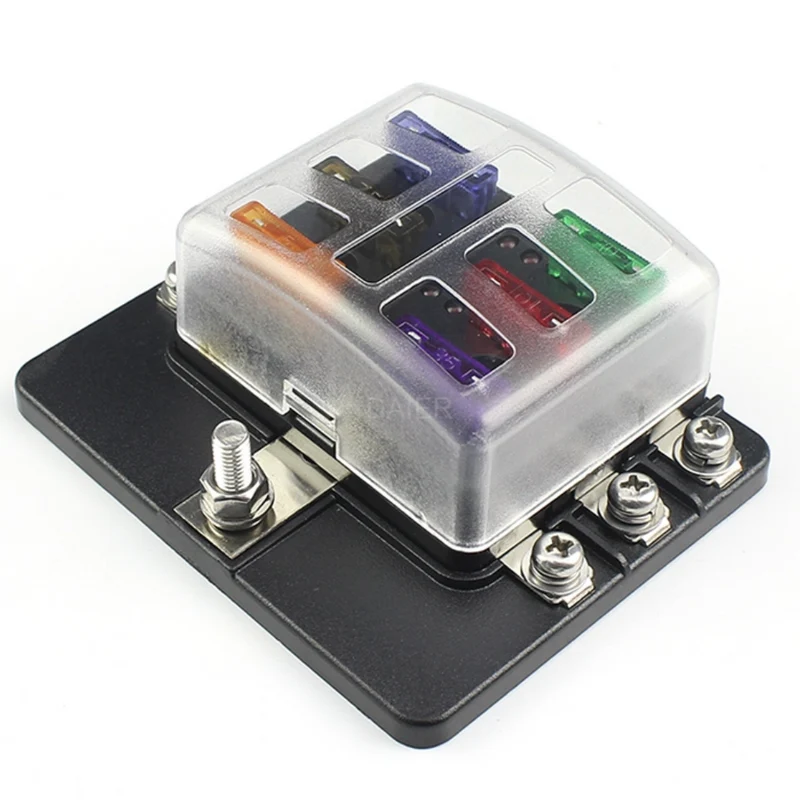

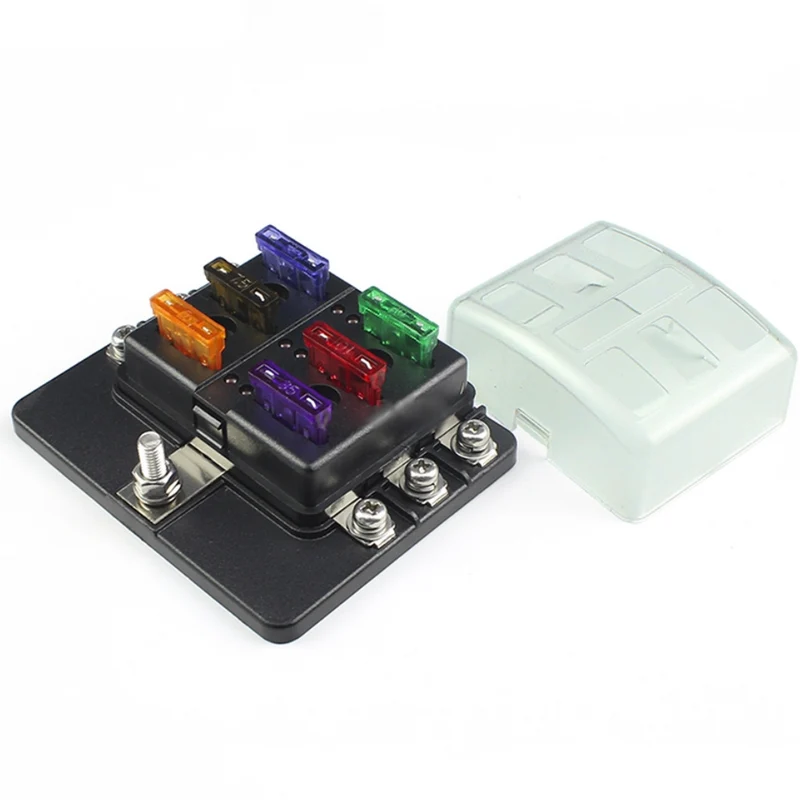

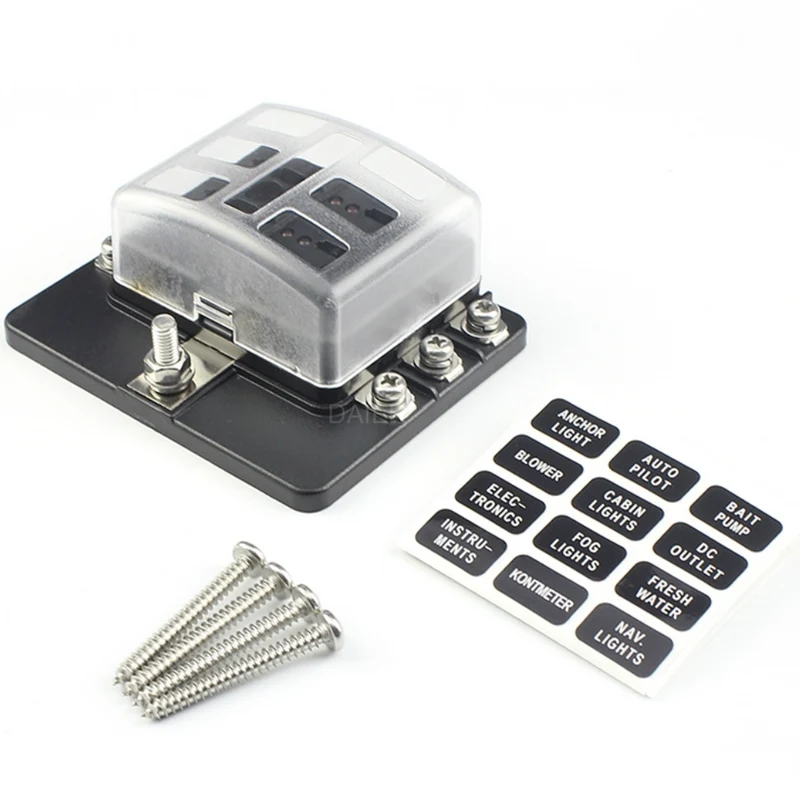

6 Way Standard Blade Fuse Box with Labels / Stud Screw Connection

This Blade Fuse Box has 30 Amp per circuit rating & 100 Amps per panel. These bus bars have screw connections (#8) with a positive single 5mm stud (for 5.3mm Ring Terminals Click Here) There are 4 fixing holes for surface mounting, screws included.

Feature: LED Blown Fuse Indicator

These busbar fuse boxes have an LED beside each fuse to light up and indicate when a fuse has blown.

Blade Fuse Box Specifications:

  • Fuse Slots: 6
  • Fuse Type: Standard
  • Fuses Included: 2 x 20A, 4 x 15A, 2 x 10A, 2 x 5A
  • Max Voltage: 32V
  • Input terminal current rating: 100A max.
  • Output terminal current rating: 30A max. per circuit
  • Cover colour: Clear
  • Stud Terminal: 1x 5mm stud
  • M5 stud length: 14mm
  • Fixing hole dia: 5mm
  • Fixing hole pitch: 28 x 16 mm
  • Overall dims: 85 (L) x 63 (W) x 36 (H) mm
  • Blade Fuse Types: ATO & ATC
