6 Way Fuse Box with Positive & Negative Busbar

6 Way Fuse Box with Positive & Negative Busbar

The 6-way fuse block with a negative bus is compatible with 10V-32V DC vehicles. It supports a maximum of 30A per circuit and 100A per panel.

The fuse box features 6 dedicated fuses and 6 grounding positions, with each positive terminal paired with a negative terminal for easy circuit identification at a glance.

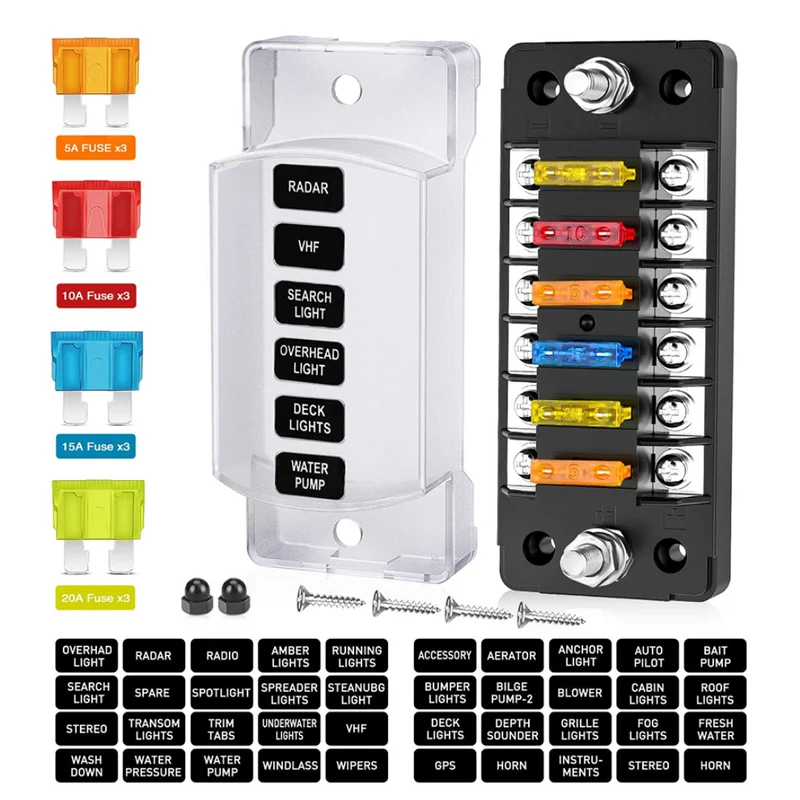

Fuses, protective cover, mounting screws, and screw caps included.

• Circuits: 6
• Maximum Amperage: 100A per block & 30A per circuit
• Main Wire Terminal: M6 bolt (75A, 32V DC Max)
• Main Wire Size: #4-6 AWG
• Single Wire Terminal: M4 stud (20A, 32V DC Max)
• Single Wire Size: #12-16 AWG
• Current Range: ATO/ATC Fuse 1A to 20A

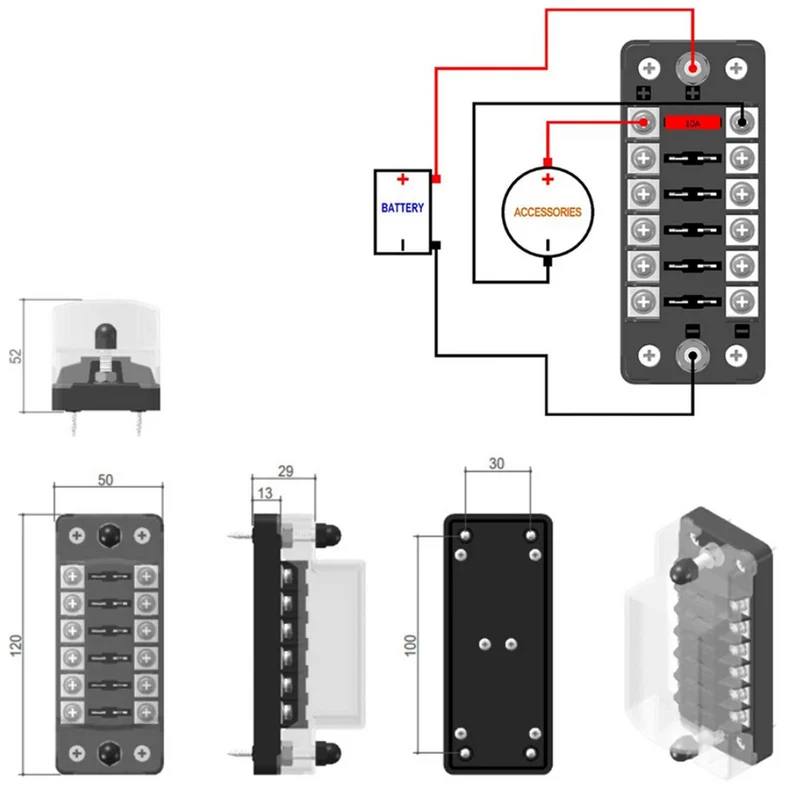

• Size with Cover: 120 mm x 50 mm x 52 mm (4.72" x 1.96" x 2.04")
