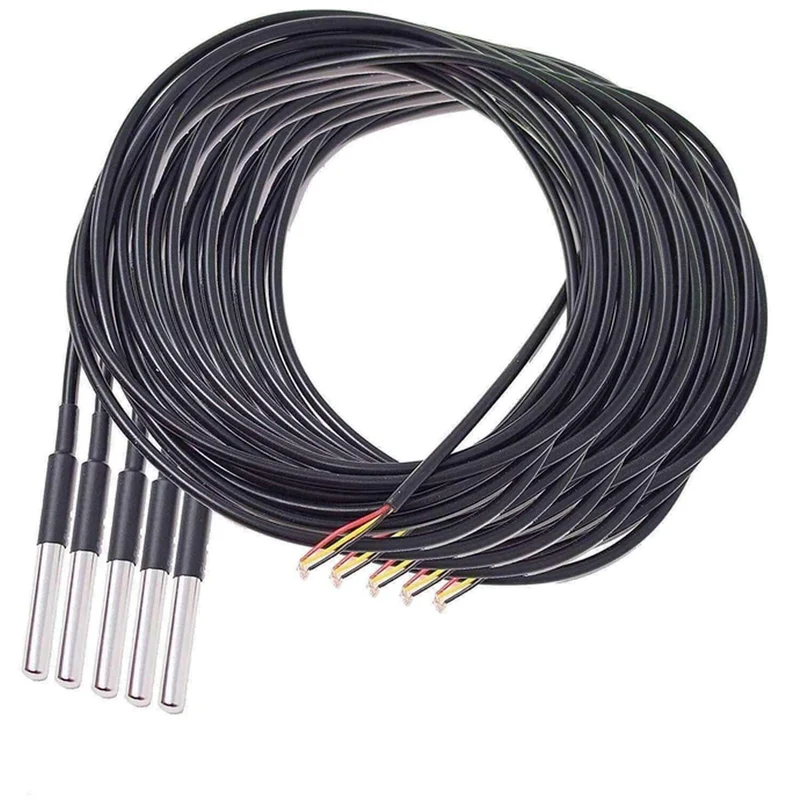

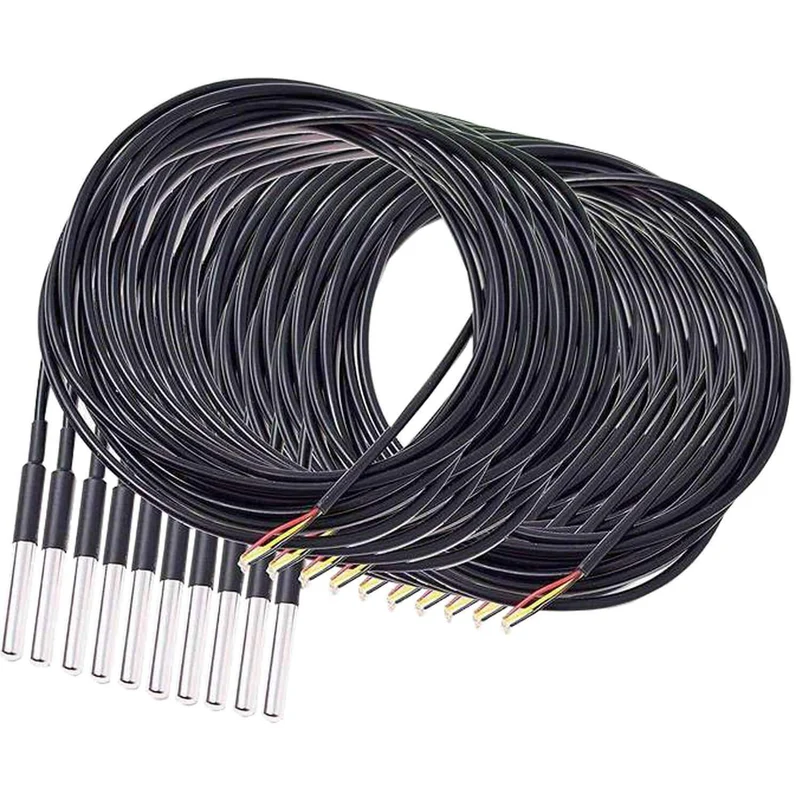

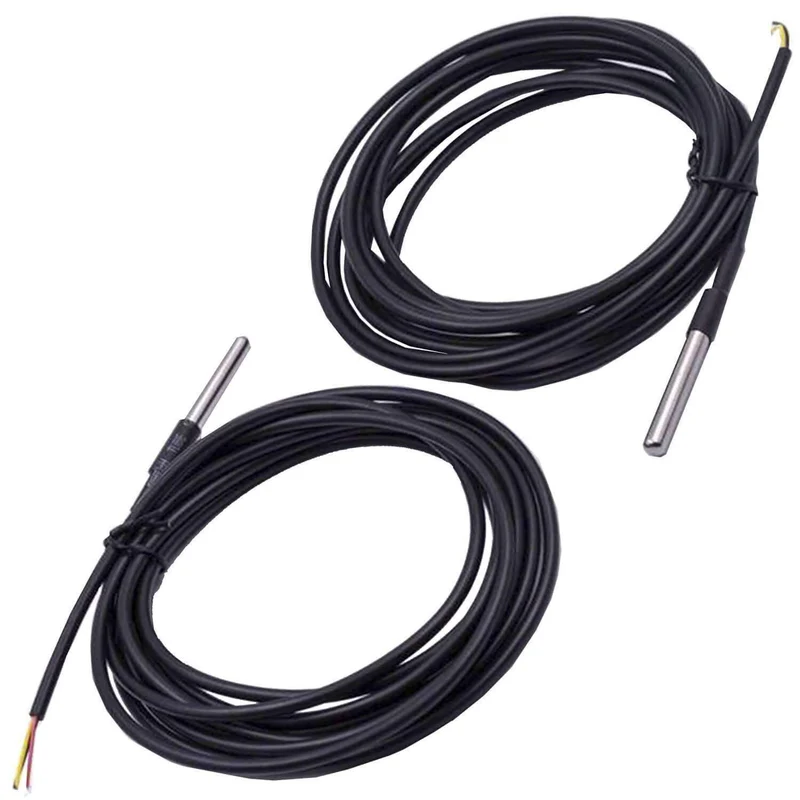

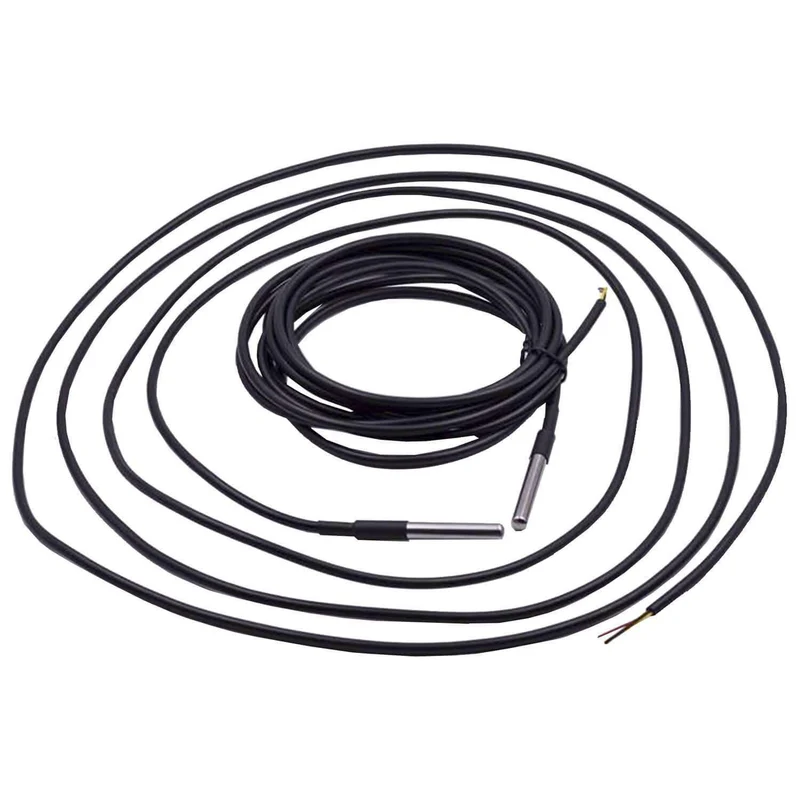

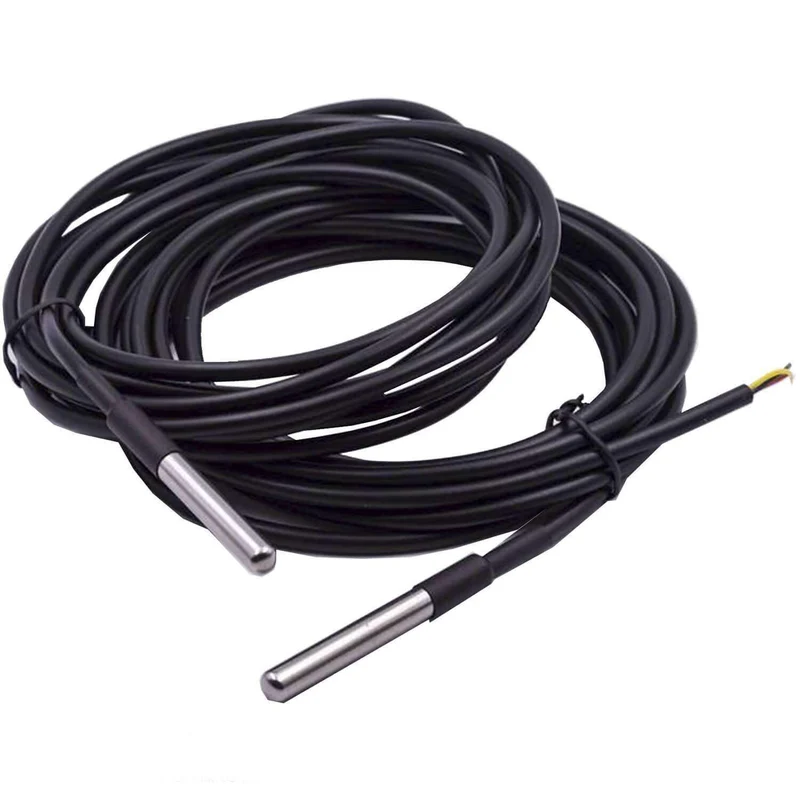

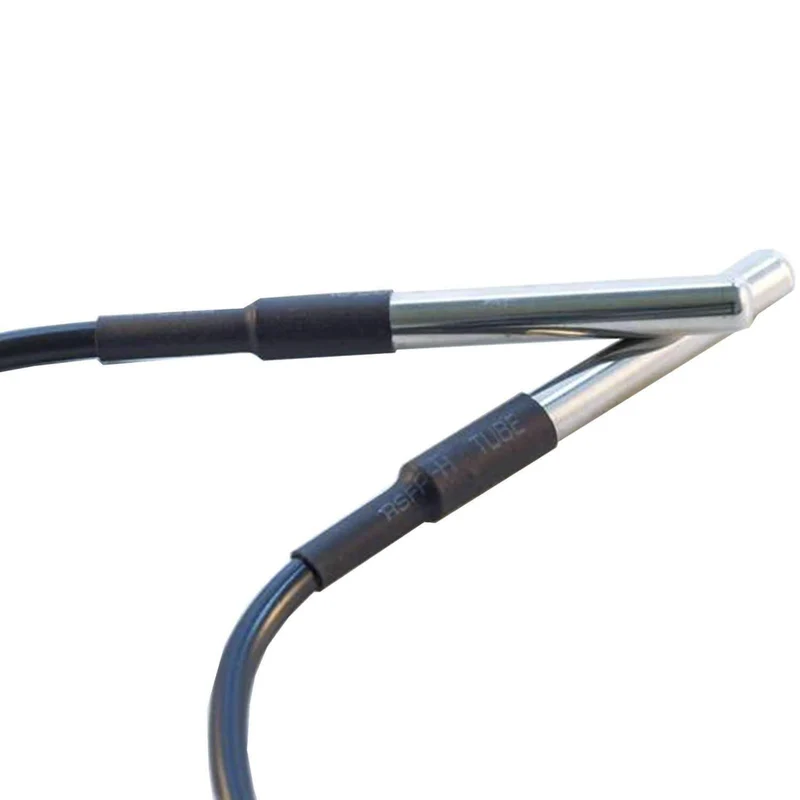

3M cable DS18B20 digital stainless steel waterproof temperature sensor for Arduino and Raspberry Pi

The AZDelivery 3M Cable DS18B20 Digital Temperature Sensor provides from 9-bit to 12-bit Celsius temperature measurements and features an alarm function with non-volatile, user-programmable high and low trigger points. The sensor does not require standby power, meaning that when temperature data is not being read, the sensor consumes no electricity at all.

Particularities

• Thanks to the unique 1-wire interface, the sensor requires only one port pin to communicate with a microcontroller.
• Each sensor has a unique 64-bit serial address, so multiple sensors can operate on the same one-wire bus.
• Thanks to three meters of cable length, room to manoeuvre when mounting the sensor. Also suitable for outdoor use due to waterproof cable.

Technical specifications

Design	TO-92
Temperature measuring range	-55 ° C to 125 ° C
Accuracy	+/-0,5°
Storage temperature range	-55 ° C to 125 ° C
Operating voltage (logic level)	5 V
Power supply	3.0 V to 5.5 V
Output management	red (VCC), yellow (DATA), black (GND)
Resistance	4.7 kΩ

Projects with Raspberry Pi

In our blog posts you will find a variety of projects with the DS18B20 Sensor with Raspberry Pi, as well as in the forum in the Maker community.

Quick start guide

When you purchase one of our high-quality products, you will also receive an included e-book for a quick introduction to the world of microelectronics.
