250A Busbar with 4 x M10 Studs and 3 x Screw Terminals

250 Amp Bus Bar with 4 x (M10) Stud Terminals & 3 (M4) Screw Terminals and Protective Cover

This power distribution bus bar has a 250A continuous current rating and  12V - 48V voltage rating. The 4x terminal studs are M10 size and there are 3 x M4 screw terminals. The contact plate is nickel plated brass and the nylon & fibreglass housing is fire retardant. It comes with a hard plastic cover to protect the stud terminals and connections.

*** SOLD SINGLY - PLEASE SELECT COLOUR & QUANTITY ***

Busbar Specifications:

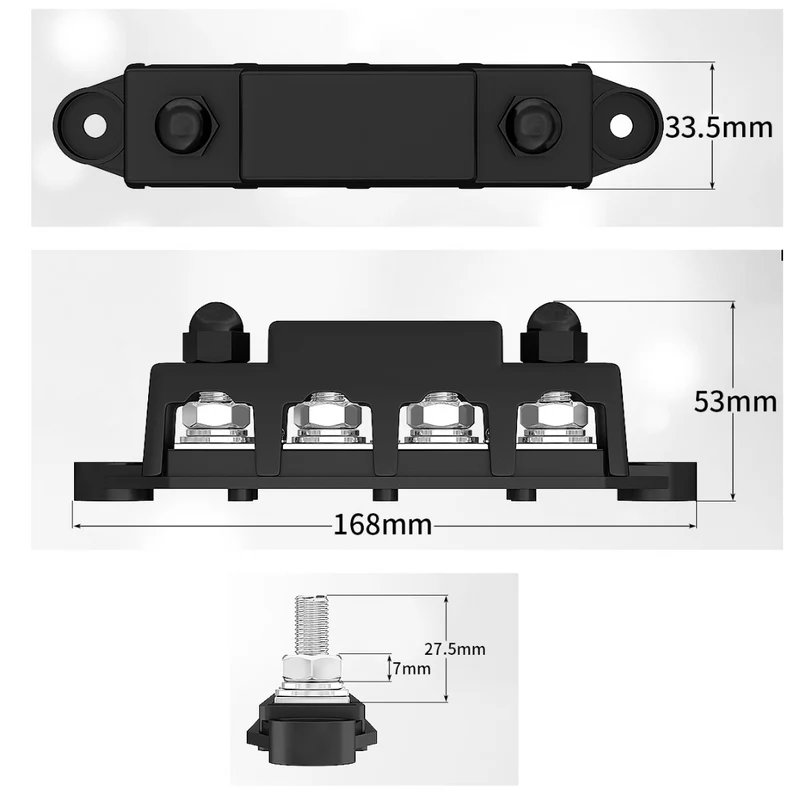

• Dimensions: 170mm x 34mm x 53mm
• Terminal Stud Size: 4 x M10 (3/8”)
• Screw Stud Size: 3 x M4
• Max Voltage: 48V
• Continuous Current: 250A
• Sold Singly (Please Select Colour)
