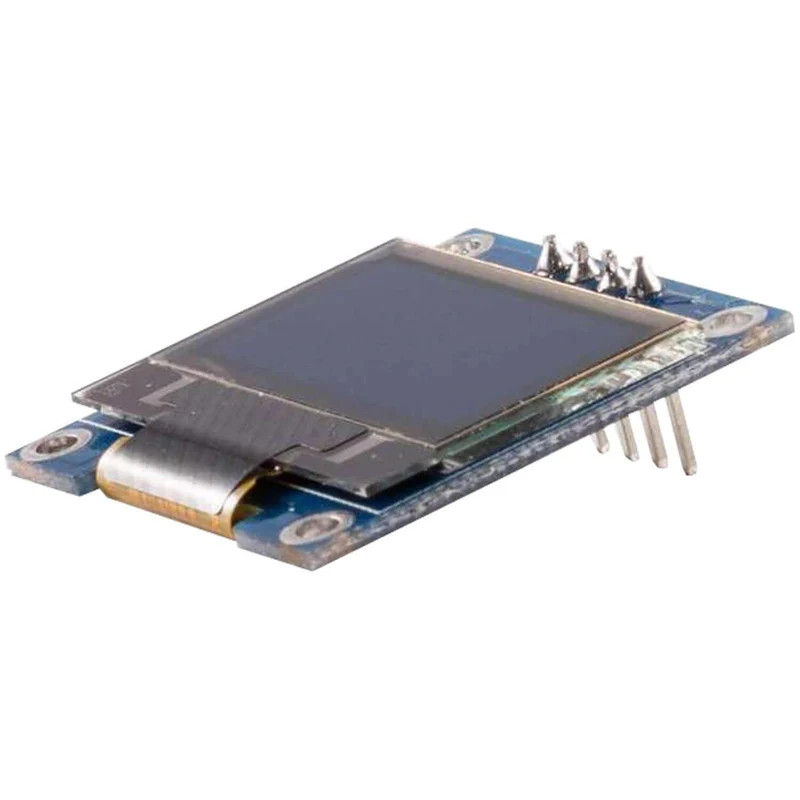

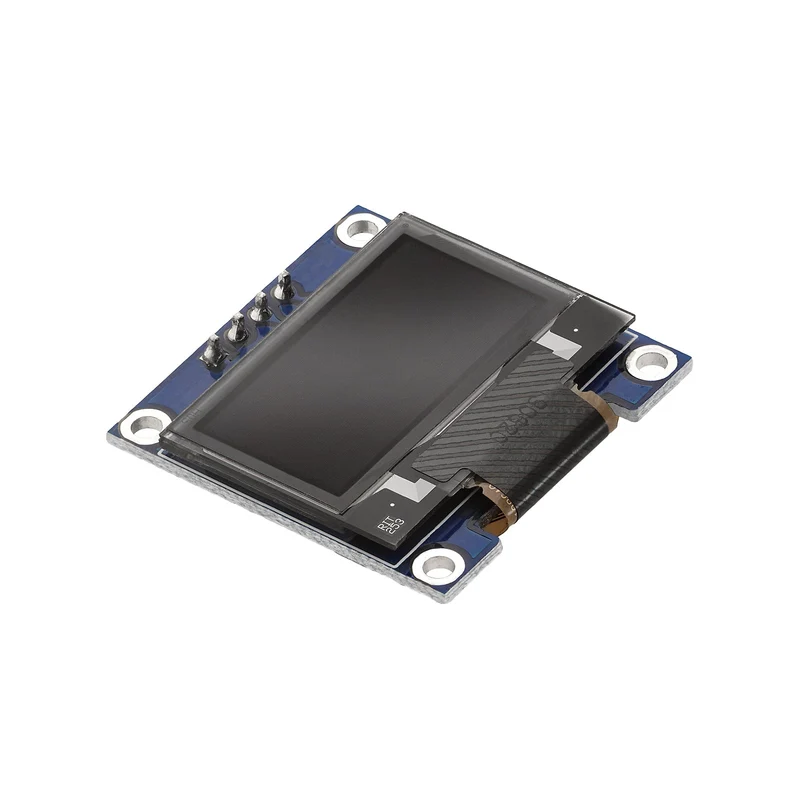

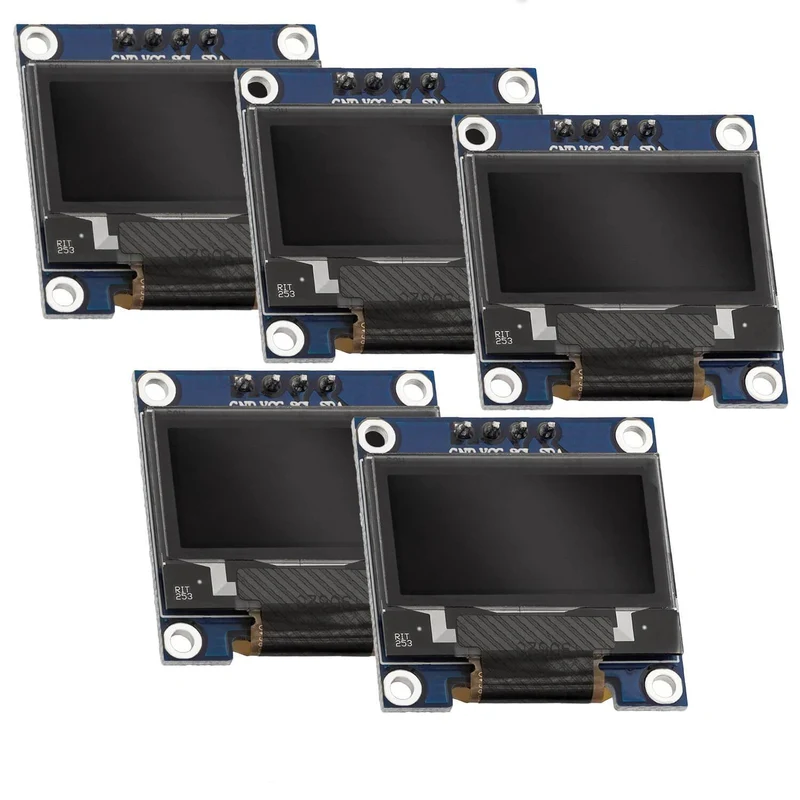

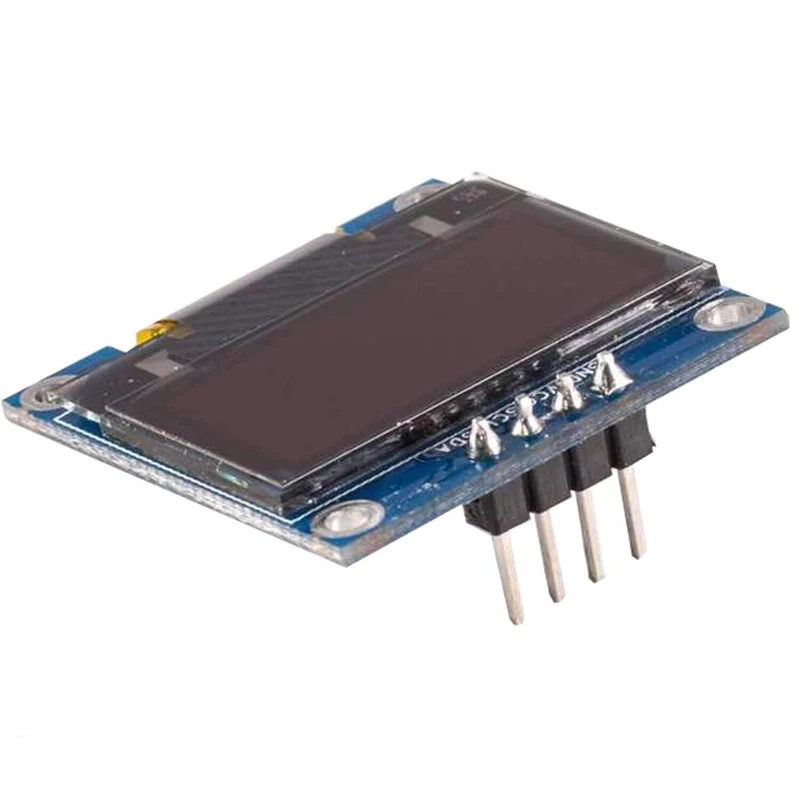

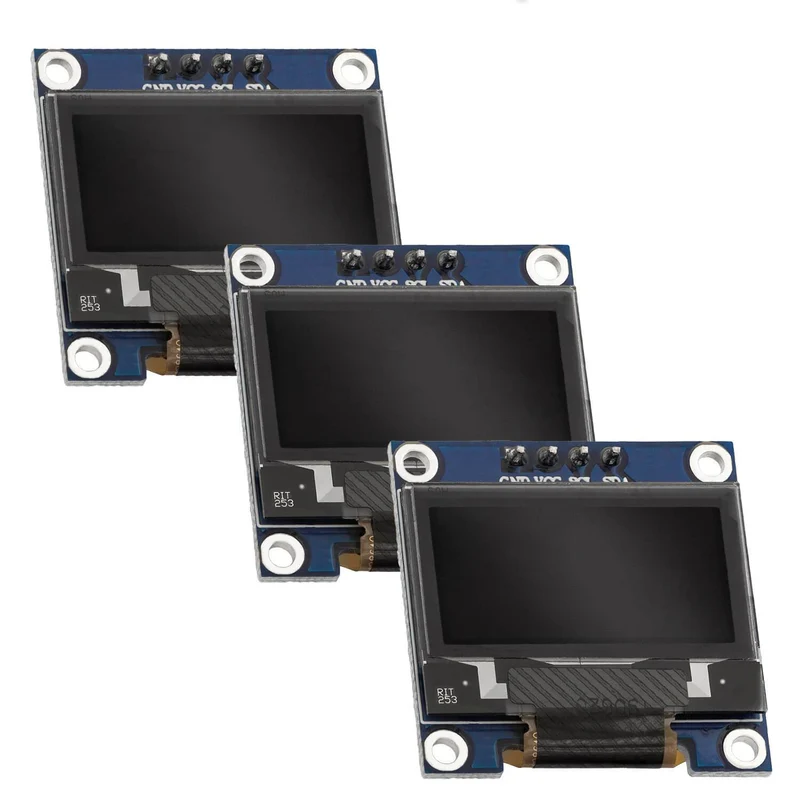

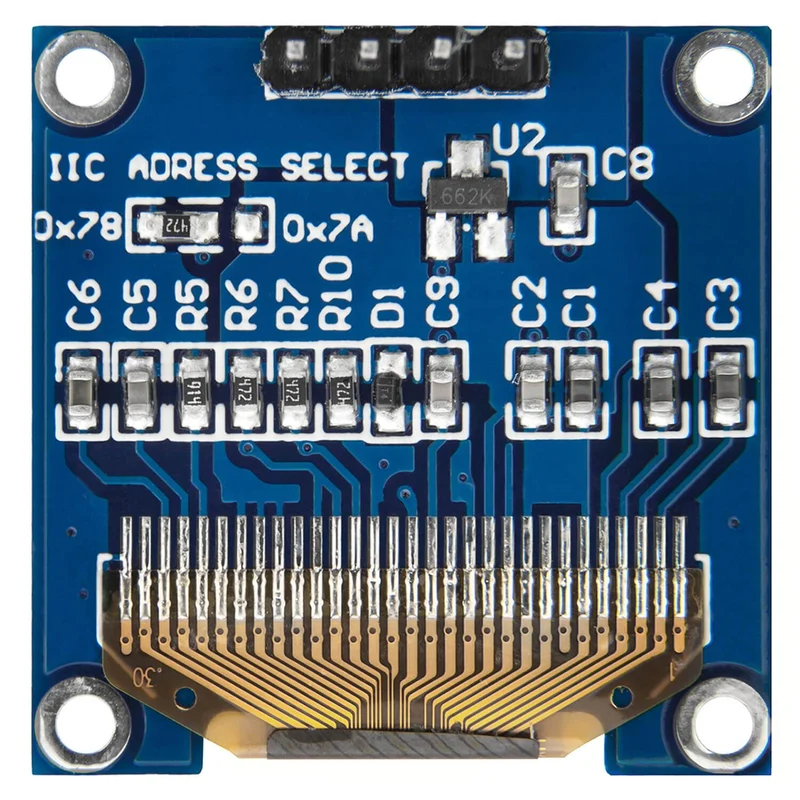

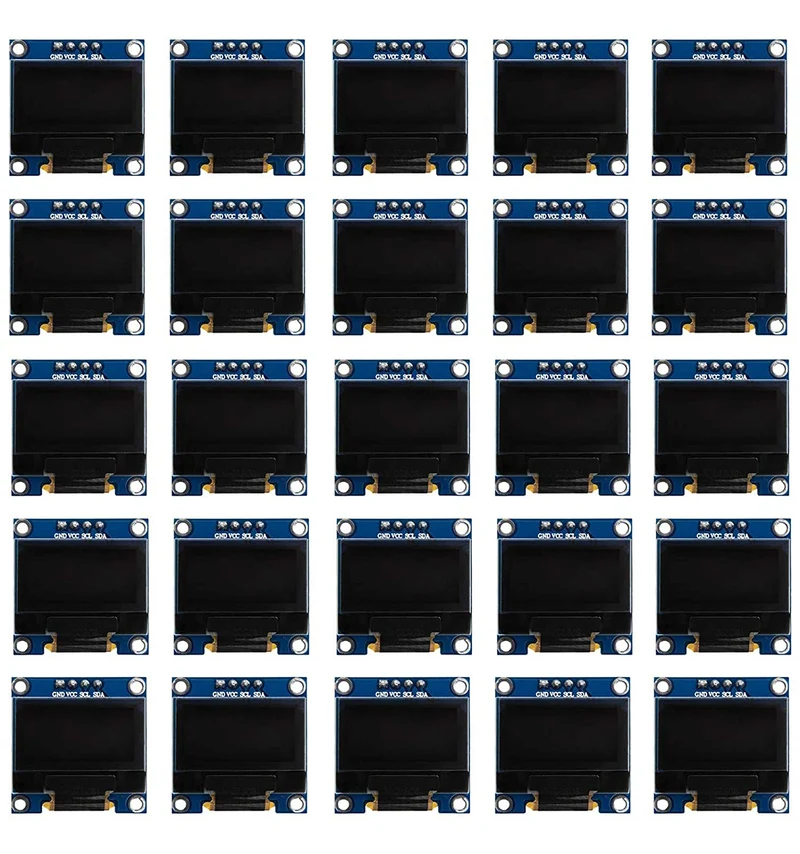

0.96 inch OLED SSD1306 display I2C 128 x 64 pixels compatible with Arduino and Raspberry Pi

Monochrome 0.96" OLED display with 128 x 64 pixels (white)

The AZDelivery 0.96" OLED display is very small with a screen diagonal of 3 cm and is easy to read thanks to its high contrast. The display consists of 128 x 64 OLED pixels, which are individually controlled by the built-in SSD1306 chip.

Special features

• The display is controlled via the I2C interface and only requires 4 connections.
• In combination with the two libraries Adafruit GFX and Adafruit SSD1306, which also contain example sketches, the display can be programmed quickly.

Technical data

Chipset	SSD1306
Color	white
Visible angle	> 160°
Resolution	128 x 64 pixels
Operating voltage	3.3V to 5V
Operating temperature	-30°C to +80°C
Low power consumption	0.04W in normal operation
Control	I2C / TWI

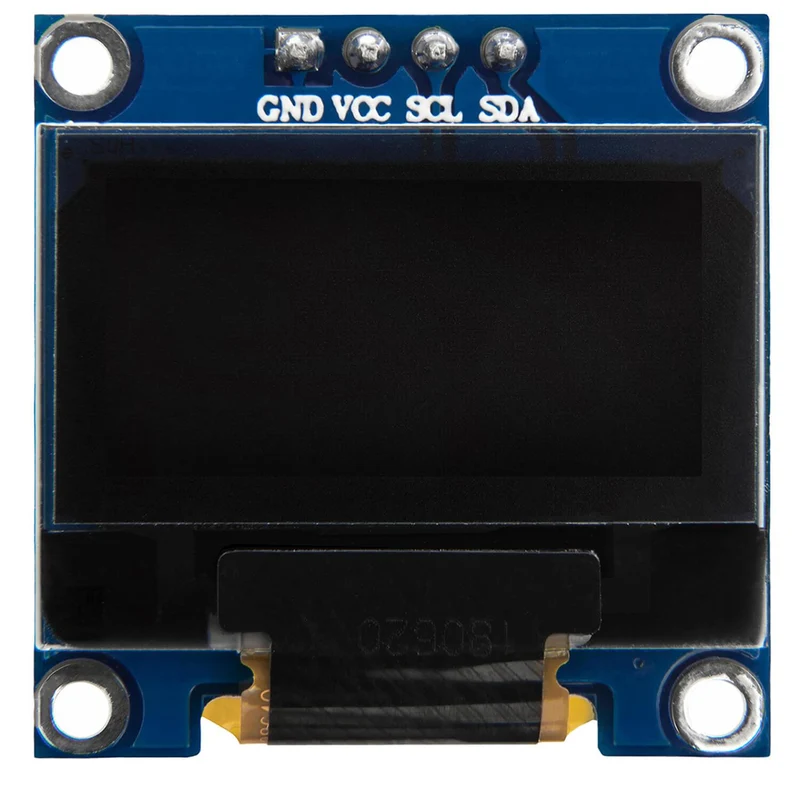

Pin assignment	VCC, GND, SCL, SDA
Dimensions	approx. 27mm x 27mm x 4.1mm

Easy to use

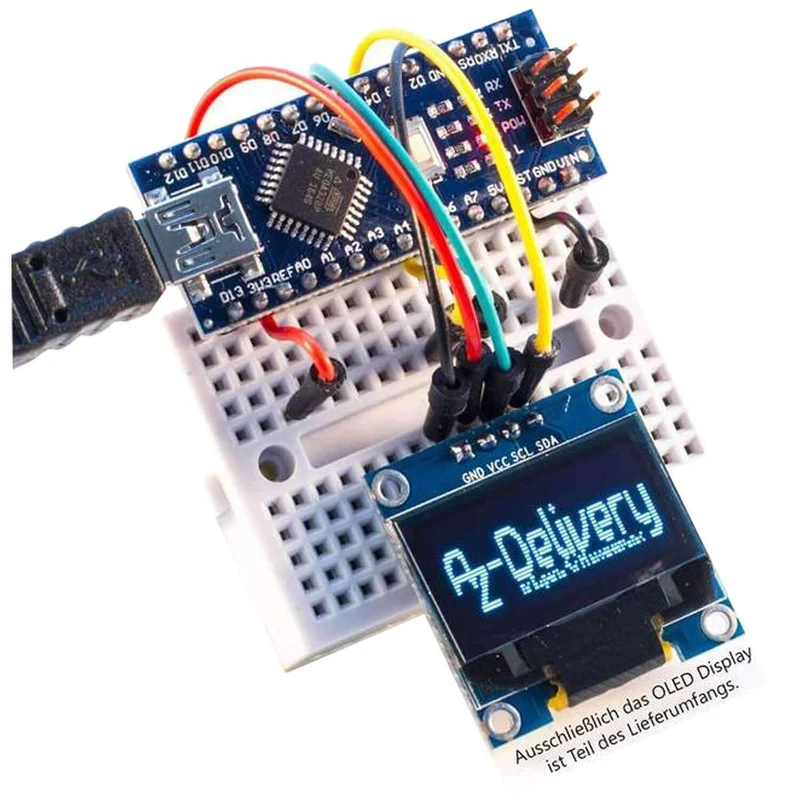

The AZDelivery 0.96" OLED display is ideal for easy use with microcontrollers such as ATmega, STM32, 8051, AVR, PIC, DSP, ARM, MSP430, PLC, TTL logic.

Quick-Start-Guide

When you purchase one of our high-quality products, you will also receive an e-book for a quick introduction to the world of microelectronics.
